SPECIALIZED

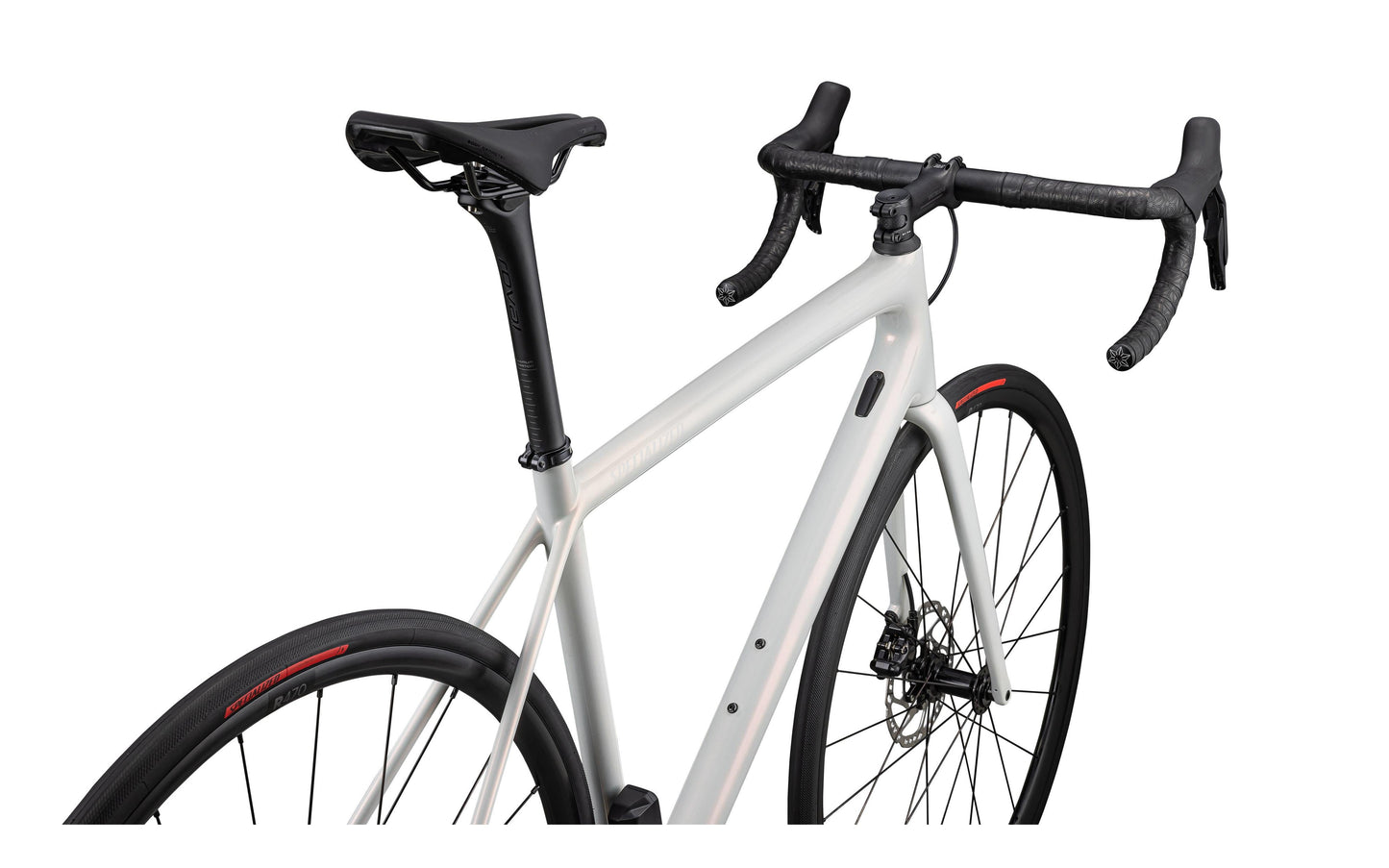

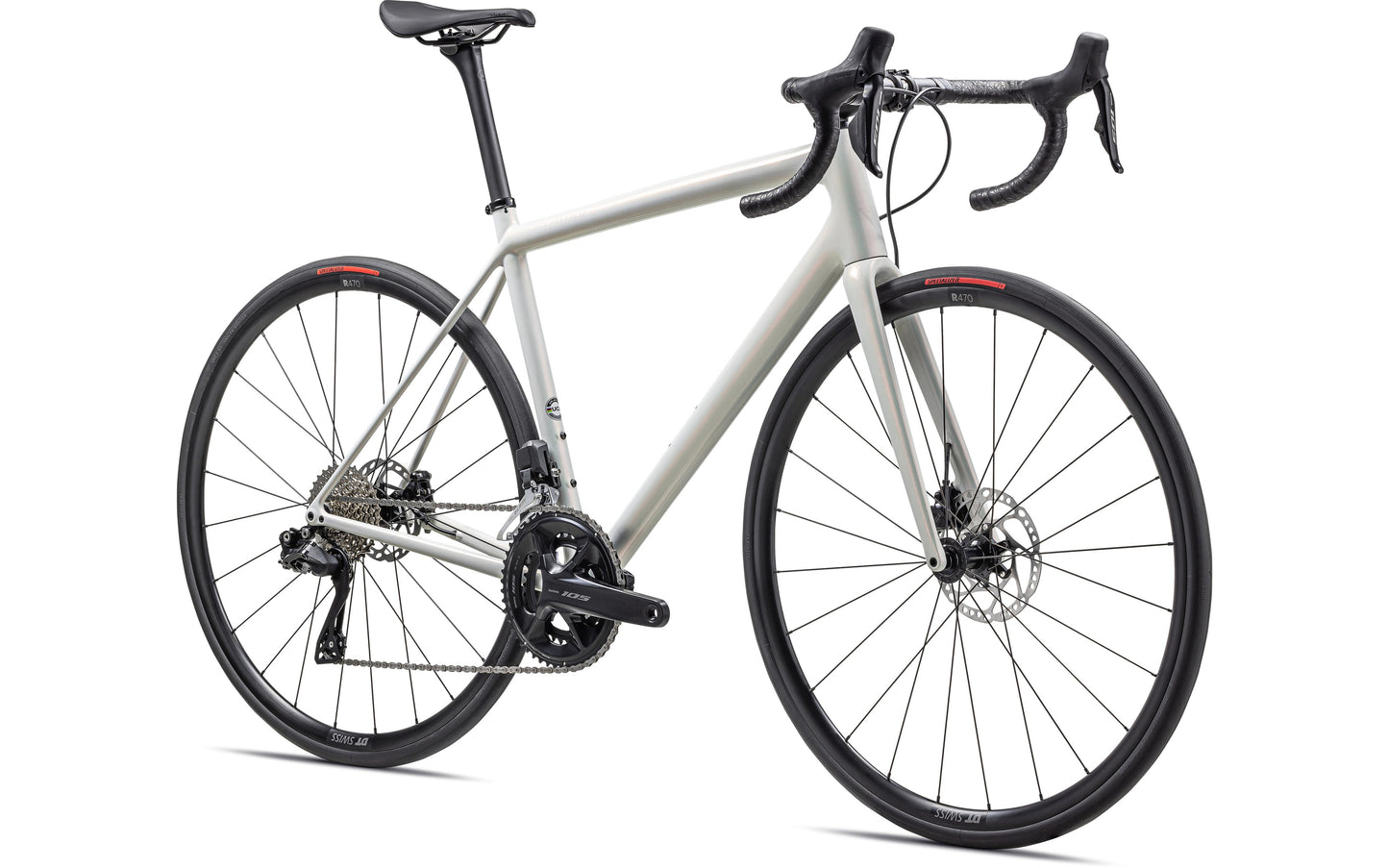

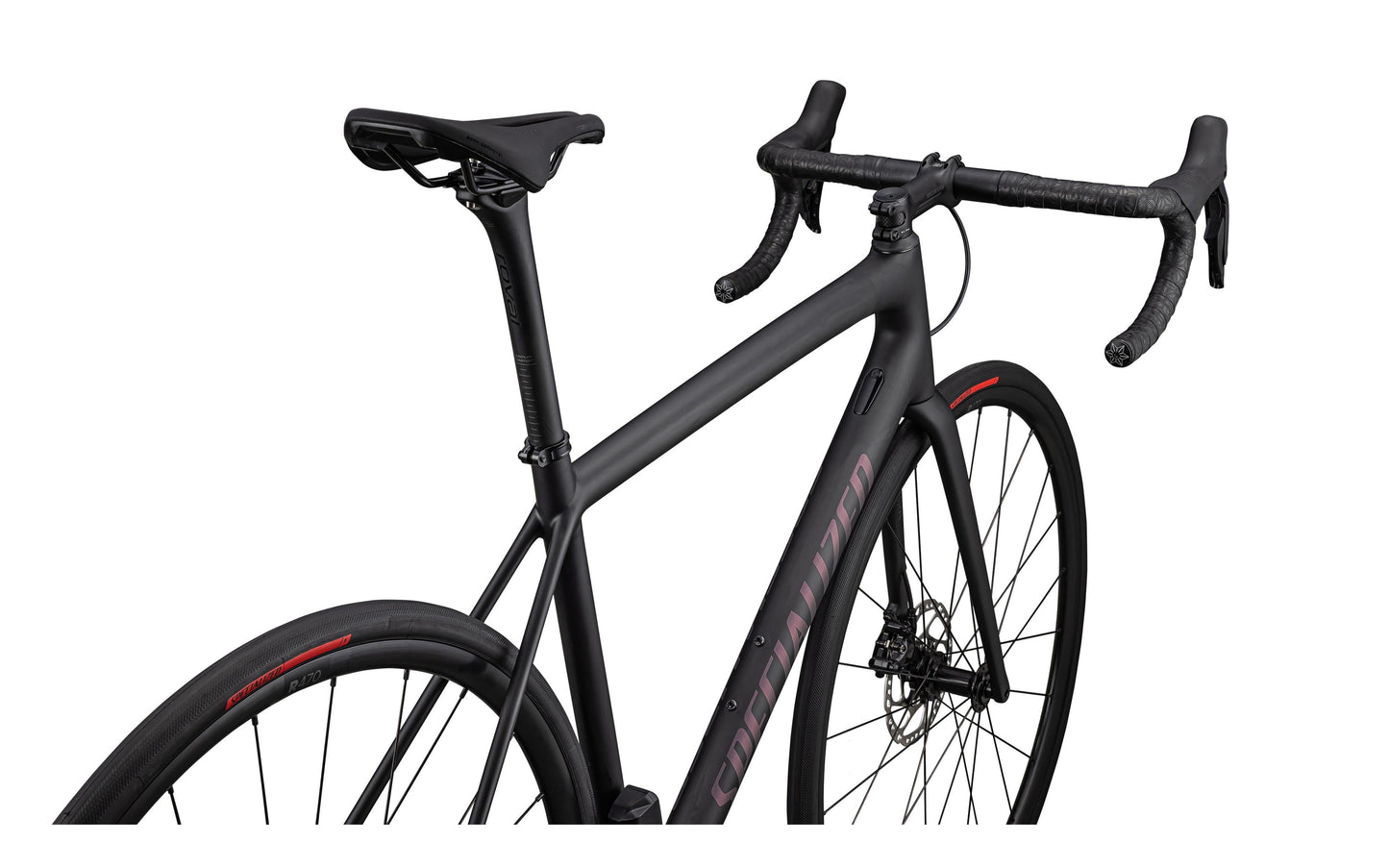

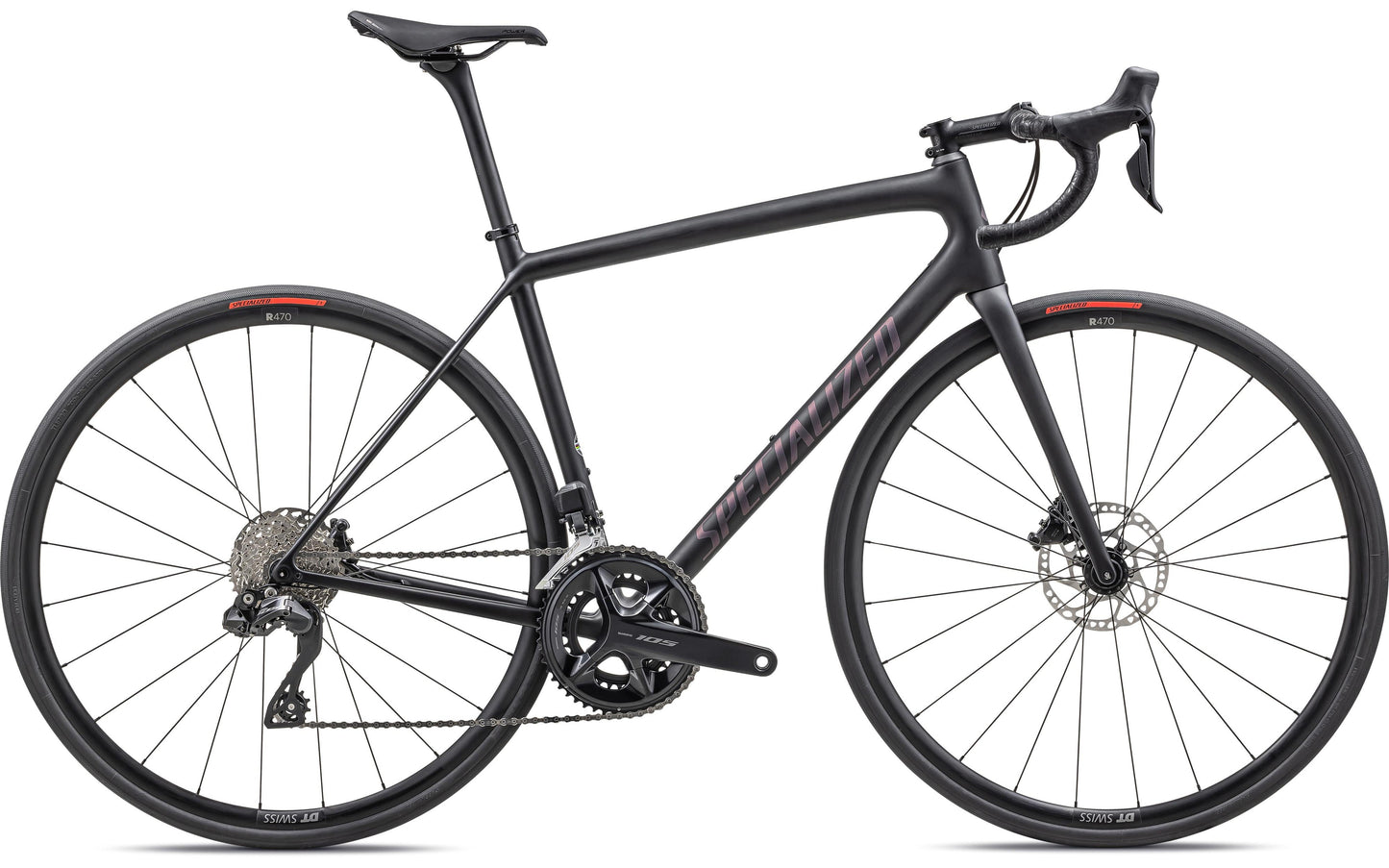

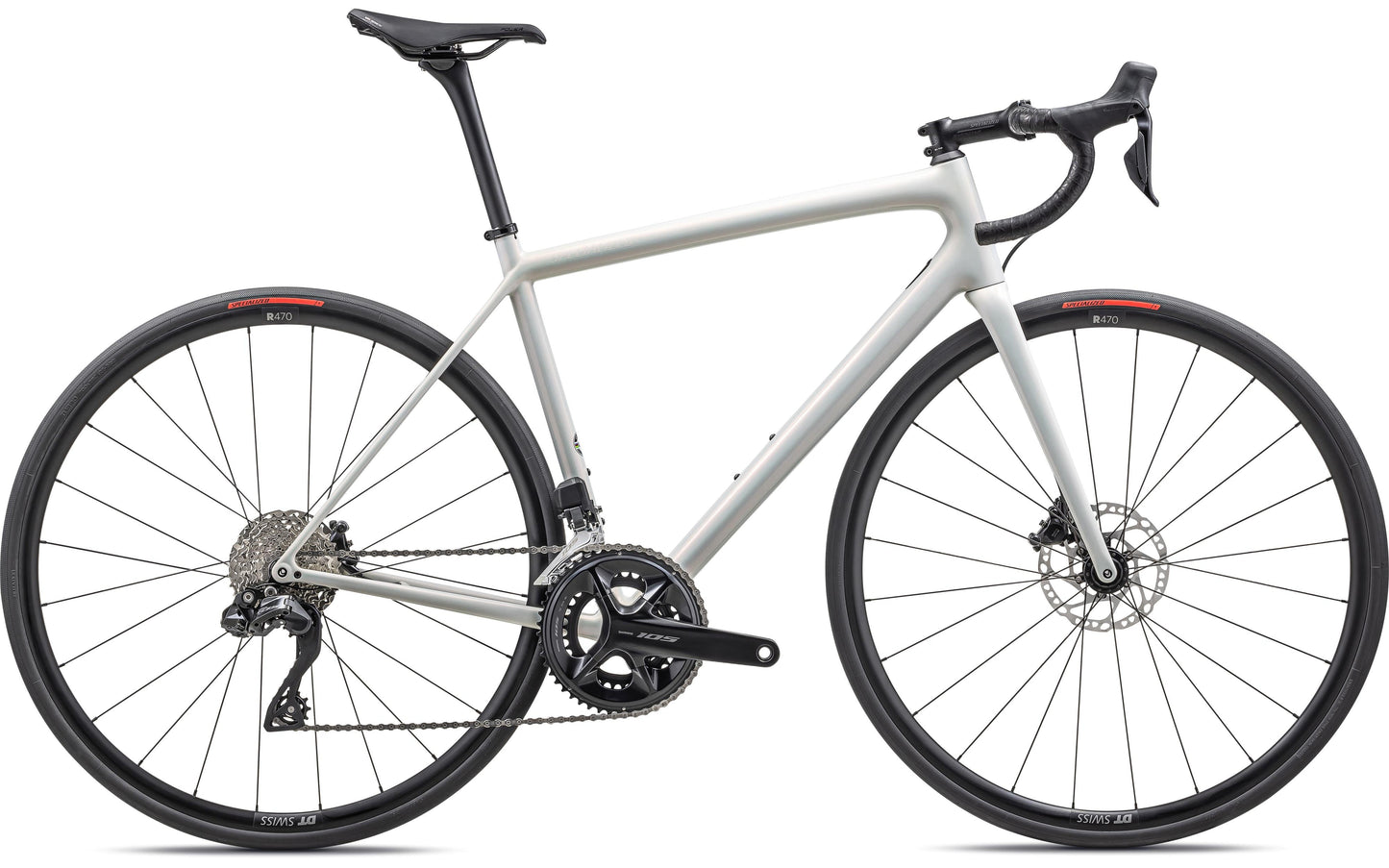

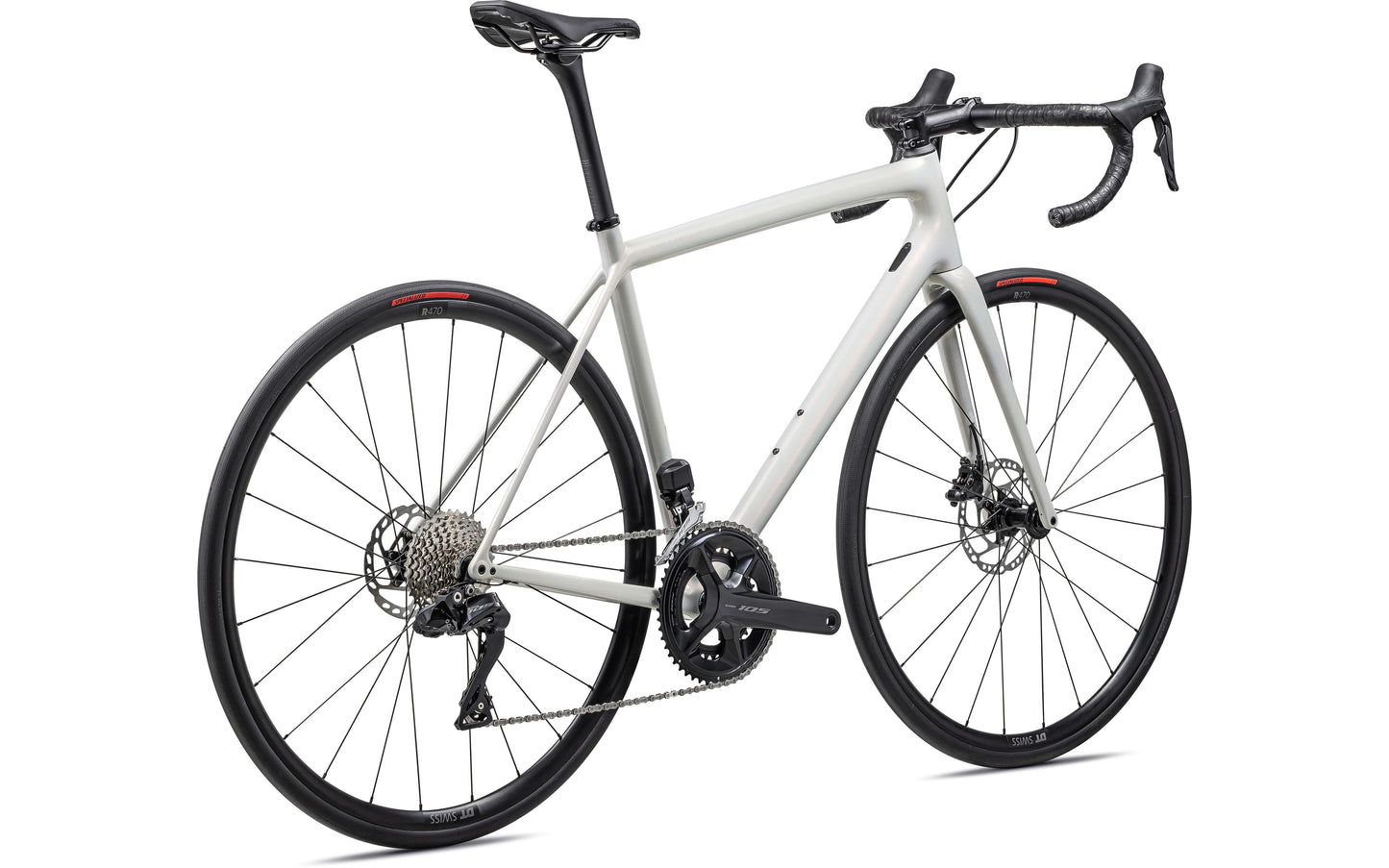

Aethos Comp - Shimano 105 Di2
Aethos Comp - Shimano 105 Di2
SKU: 97223-5356
2 - Available
Couldn't load pickup availability
Read More
Read More

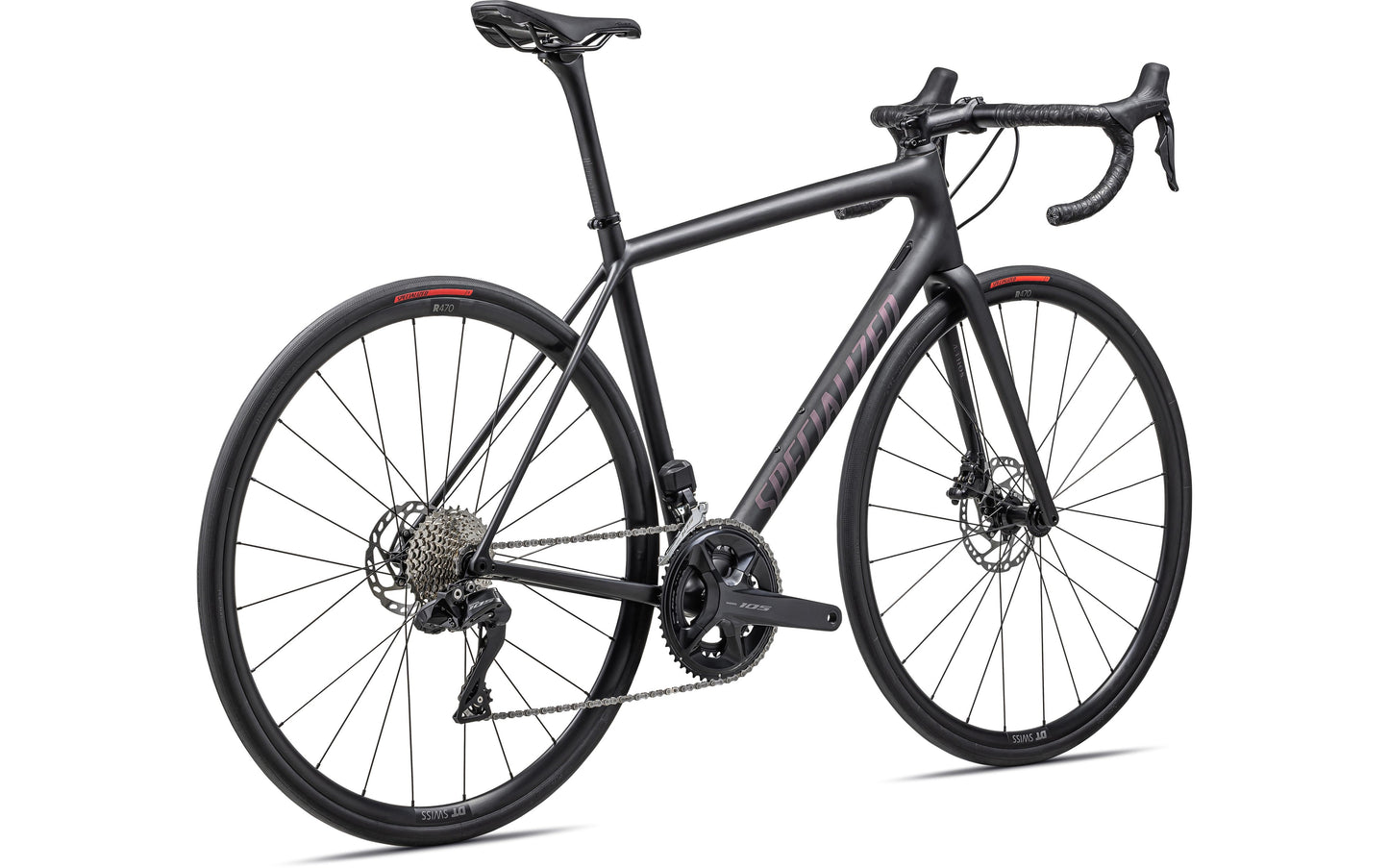

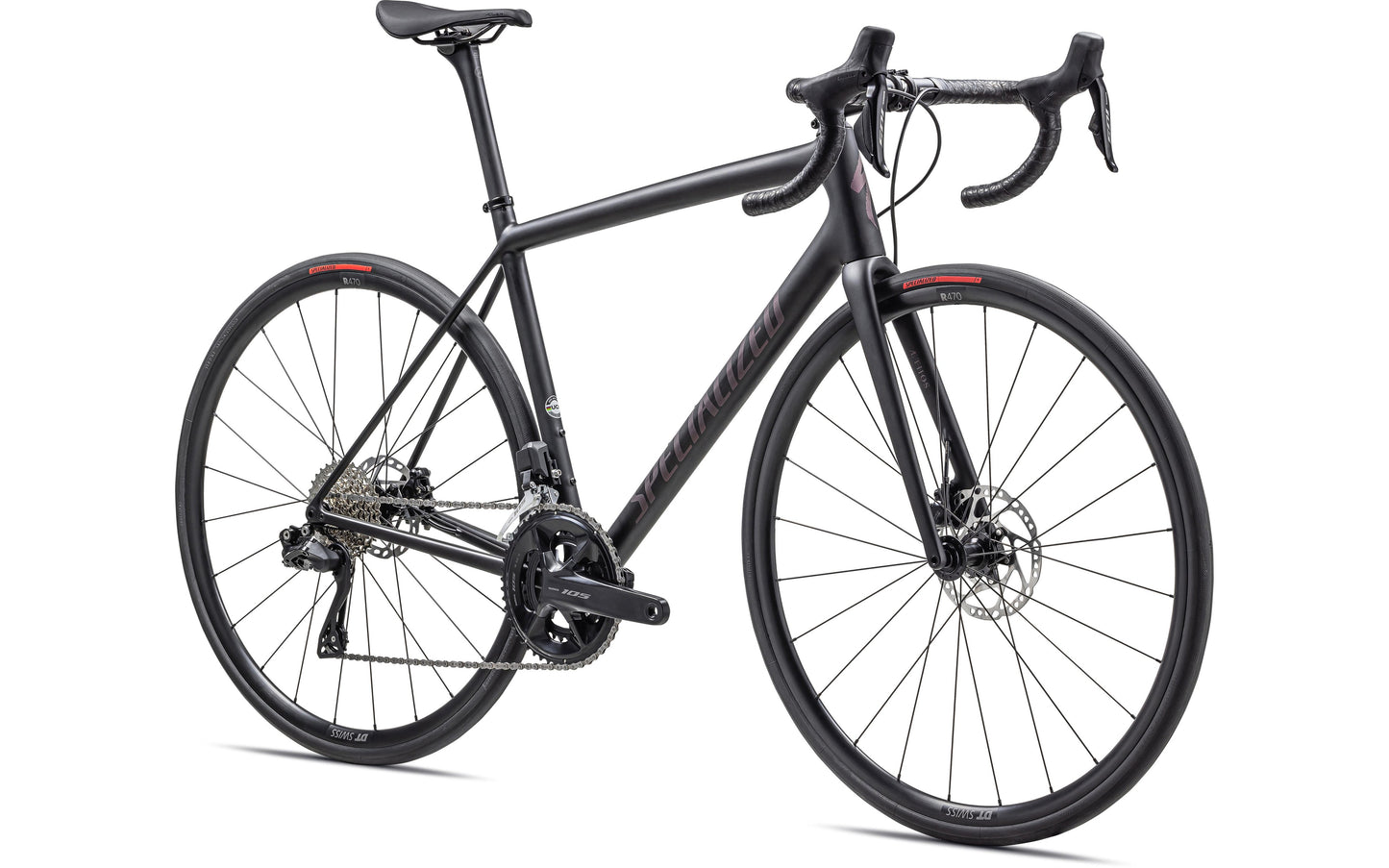

Aethos Comp - Shimano 105 Di2
What if we used every ounce of experience we’ve gained serving riders over the past 46 years and built a bike made simply for the love of riding? The Aethos is designed to straddle the line between perfect ride quality, extreme lightweight, and undeniable style. The Aethos Comp model is no exception.
With low-maintenance, Shimano 105 Di2 electronic shifting and hydraulic disc brakes paired with bomb-proof DT Swiss R470 Disc wheels, you have the perfect steed to excite you out on the road.
- The Aethos frame has been designed with the perfect combination of ultimate ride feel, light weight, and style—from accelerating up steep pitches and descending technical descents, to all-day saddle comfort on even the longest coffee rides, the Aethos hits the mark. But how, you ask? By reinventing the traditional road shape found on bikes of the past, we’ve subtly altered these shapes to deliver massive gains in stiffness and balance, all without affecting weight or durability. Pair that with an entirely new layup and process that we’ve perfected over multiple decades and you have the lightest frame out there (585 grams, S-Works, size 56cm). The Aethos is more than just a new bike, it’s the first of a new breed.
- A featherweight frame is useless without confidence-inspiring ride characteristics, which is why we’ve developed the Aethos to have the perfect balance of front and rear stiffness combined with exceptional ride quality. By studying the flexing and breathing of carbon fiber, we were able to discover groundbreaking findings about how forces flow through frames. Just a few pedal strokes and you’ll realize this sublime ride sets a new standard.
- Every detail, from the derailleur hangers to the fork expander plug have been designed with style, weight, and durability in mind. We’ve also spec’d it with Roval’s all-new Alpinist carbon seatpost, further saving weight and improving ride characteristics. Everything in pursuit for the perfect ride.
Technical Specifications
DRIVETRAIN
Chainrings
50/34T
Shift Levers
DISC BRAKE ASSEMBLED SET/J-kit DIRECT, 105, ST-R7170(R), BR-R7170(R), W/O ADAPTER,FOR 25MM MNT, RESIN PAD(W/O FIN), XXXXMM HOSE(SM-BH90 BLACK), 1 GROUP, BULK
Crankset
SHIMANO FRONT CHAINWHEEL, FC-R7100, 105, FOR REAR 12-SPEED, HOLLOWTECH 2, 50-34T W/O CG, W/O BB PARTS, BLACK
Rear Derailleur
Shimano 105 R7170, 12-speed
Front Derailleur
Shimano 105 R7170, braze-on
Cassette
Shimano 105, 12-speed, 11-34t
Chain
Shimano SLX, M7100, 12-speed
Bottom Bracket
Shimano Threaded BSA BB
COCKPIT
Saddle
Body Geometry Power Sport, steel rails
SeatPost
Roval Alpinist Carbon Seatpost
Seat Binder
SEAT COLLAR, KCNC, SPL-SC02-300-02, EXTRUDED, 7075-T73, 30.0MM, 10B21, BLACK ZINC BOLT, BOLT CLAMP TYPE
Stem
Specialized Pro SL, alloy, 4-bolt

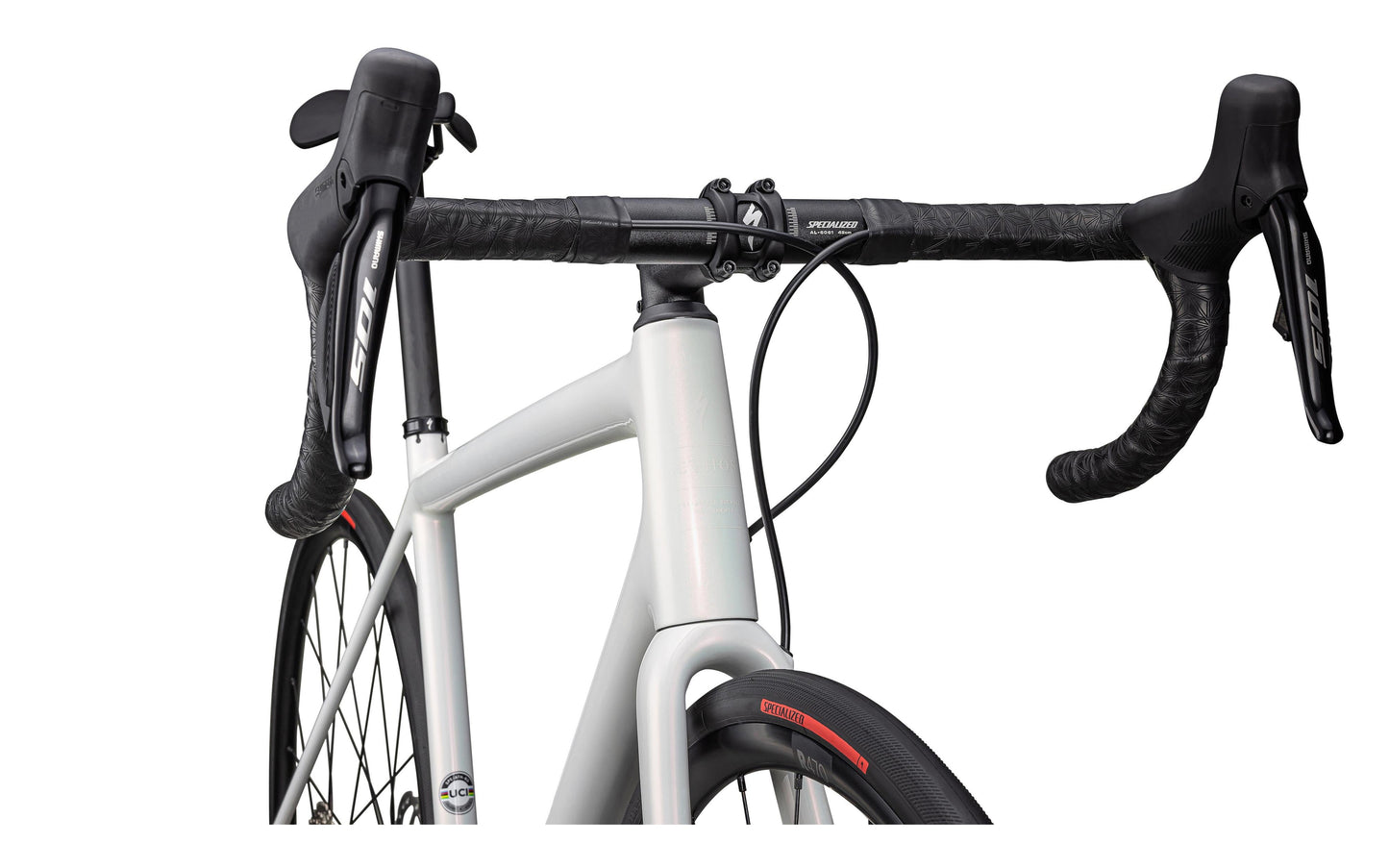

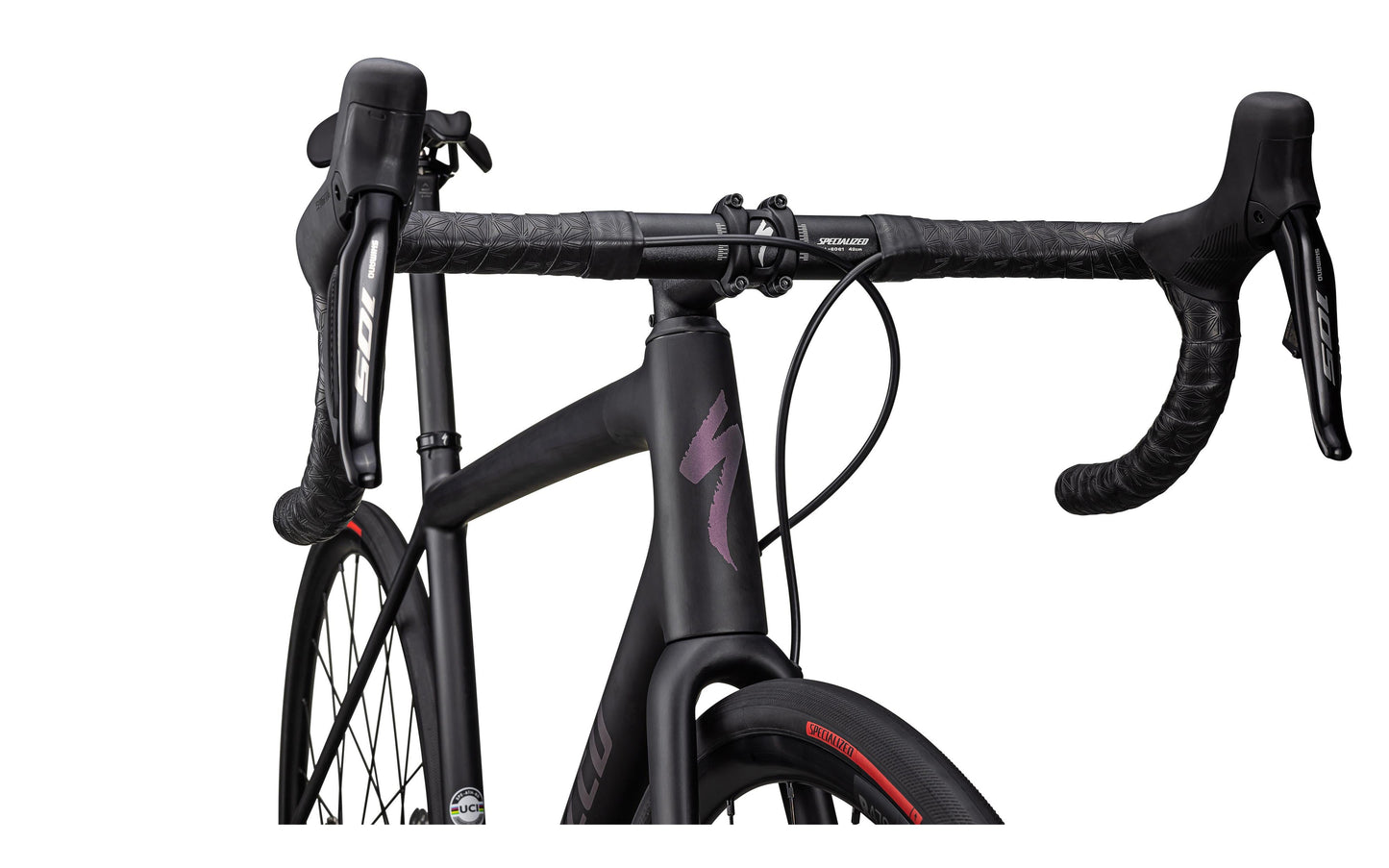

Handlebars
Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
Tape
Supacaz Super Sticky Kush
WHEELS & TIRES
Rear Wheel
DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
Front Wheel
DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
Inner Tubes
PV STANDARD BULK ROAD 700x20-28, 48mm
Front Tire
Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x28mm
Rear Tire
Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x28mm
SUSPENSION
Fork
FC070~72-2, 2021 Project 300 10r Disc
FRAMESET
Frame
IC091-1, 2021 Project 300 10r Disc
BRAKES
Rear Brake
Shimano 105, Hydraulic disc
Front Brake
Shimano 105, Hydraulic disc
* Specifications are subject to change without notice
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 300mm | 300mm | 360mm | 360mm | 360mm | 360mm |
| Stack | 514mm | 527mm | 544mm | 565mm | 591mm | 612mm |
| Reach | 375mm | 380mm | 384mm | 395mm | 402mm | 408mm |
| Head Tube Length | 109mm | 120mm | 137mm | 157mm | 184mm | 204mm |
| Head Tube Angle | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
| BB Height | 266mm | 266mm | 268mm | 268mm | 268mm | 268mm |
| BB Drop | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
| Trail | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
| Fork Length, Full | 369mm | 369mm | 369mm | 369mm | 369mm | 369mm |
| Fork Rake/Offset | 47mm | 47mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 574mm | 577mm | 579mm | 591mm | 606mm | 613mm |
| Chainstay Length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
| Wheelbase | 973mm | 975mm | 978mm | 991mm | 1005mm | 1012mm |
| Top Tube Length, Horizontal | 508mm | 531mm | 540mm | 562mm | 577mm | 595mm |
| Bike Standover Height | 705mm | 728mm | 748mm | 769mm | 796mm | 824mm |
| Seat Tube Length | 431mm | 462mm | 481mm | 504mm | 532mm | 567mm |
| Seat Tube Angle | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
