SPECIALIZED

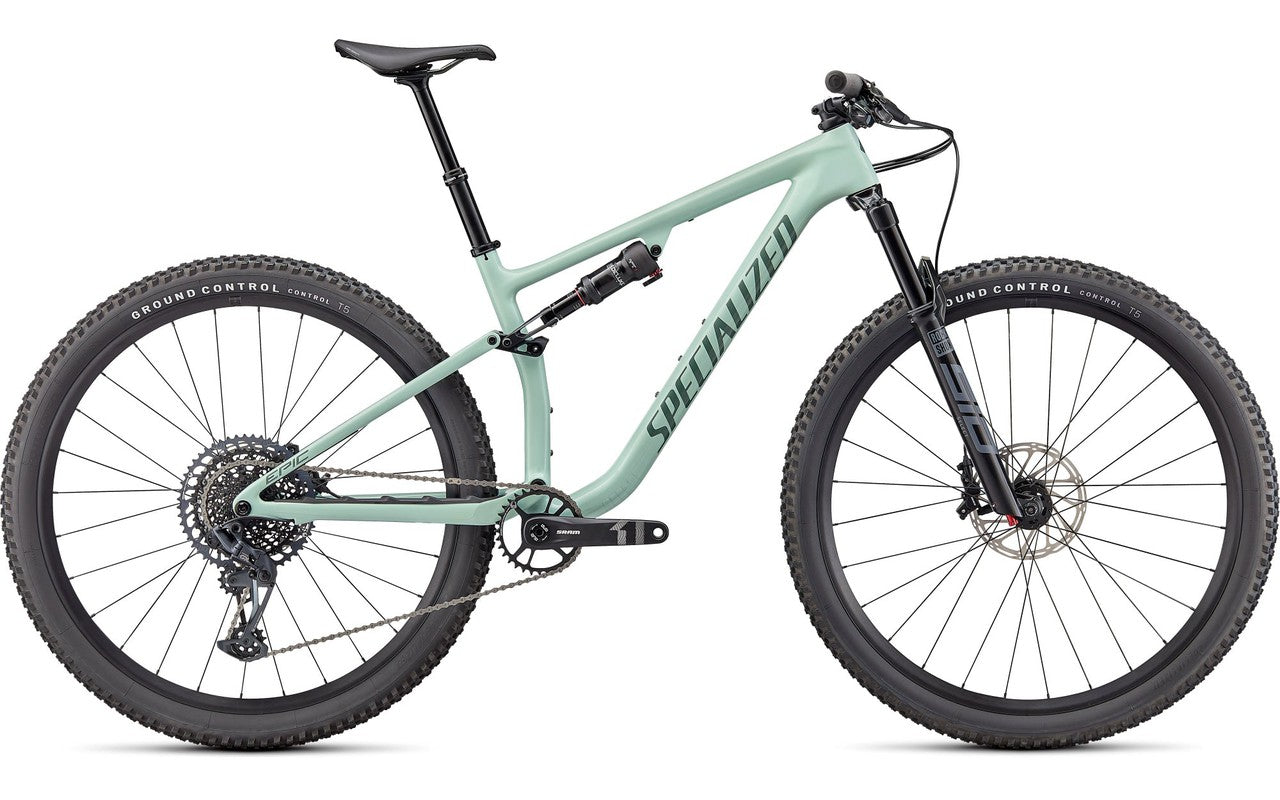

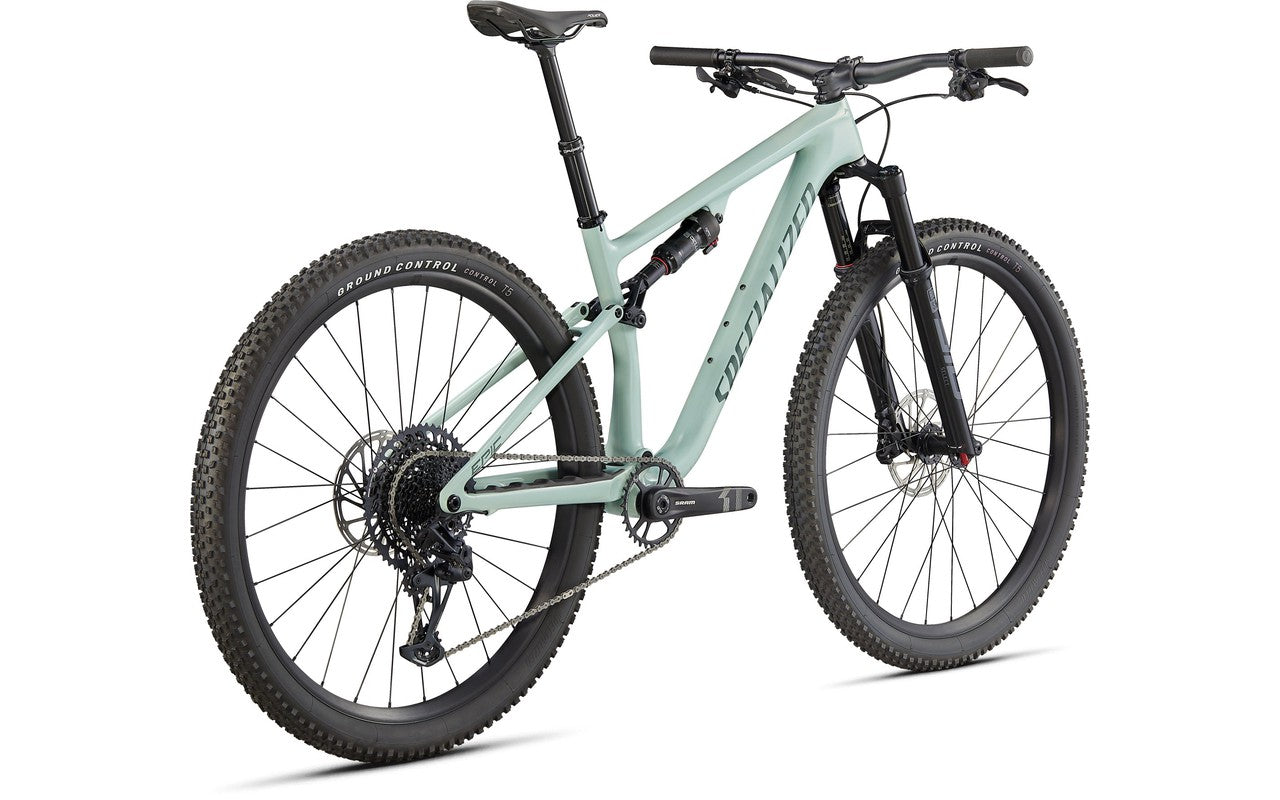

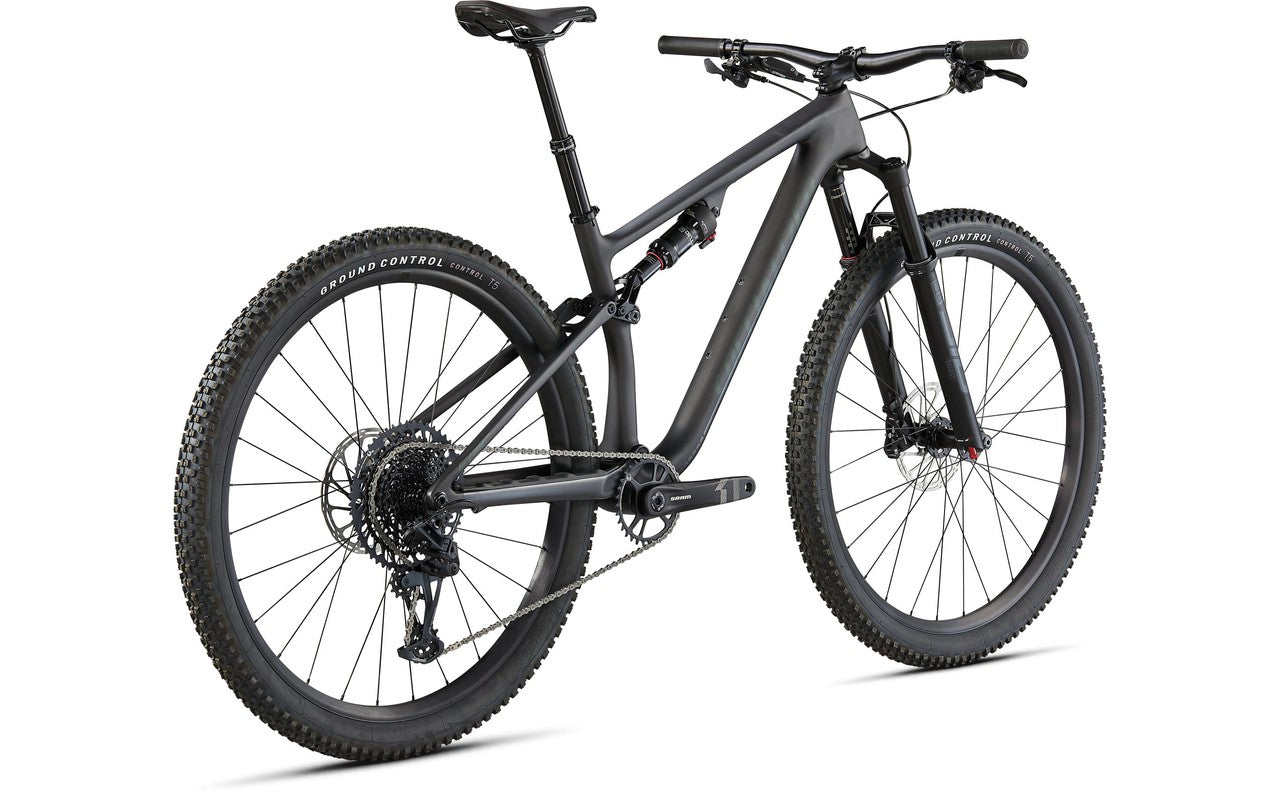

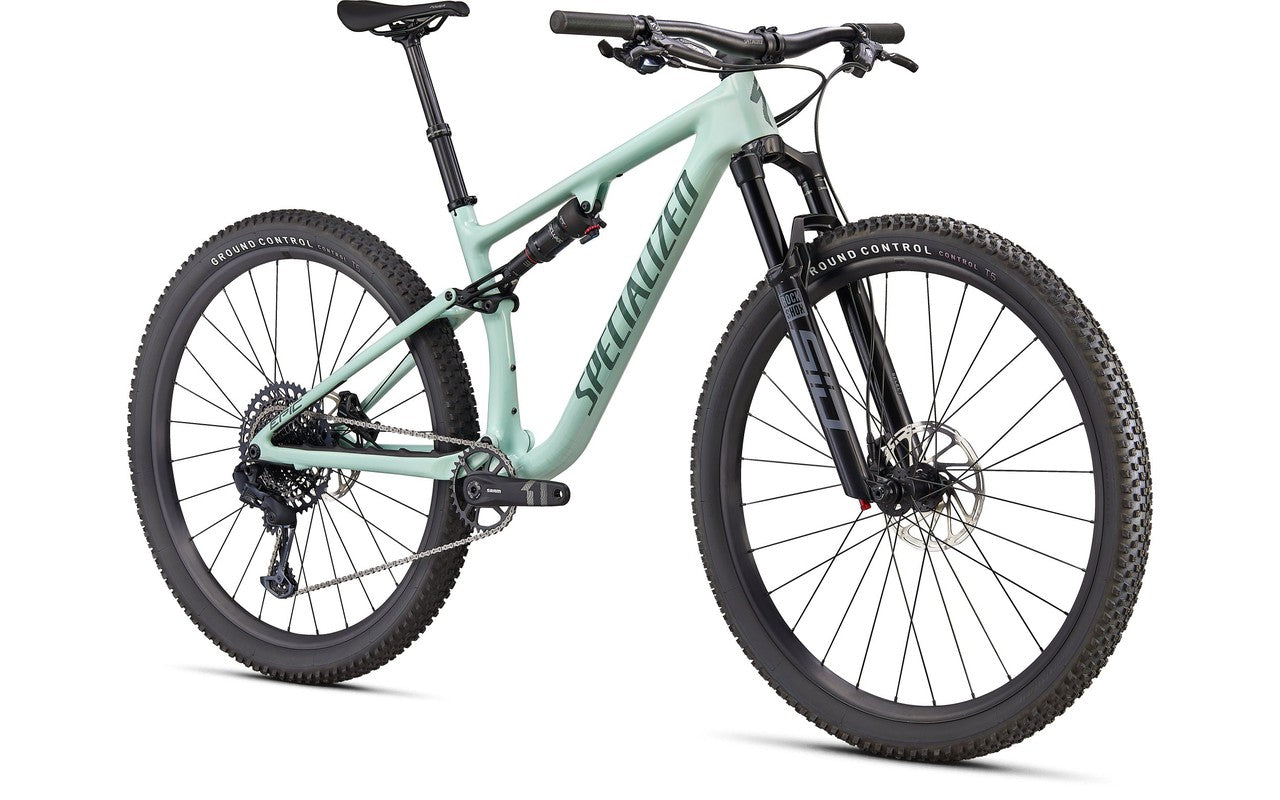

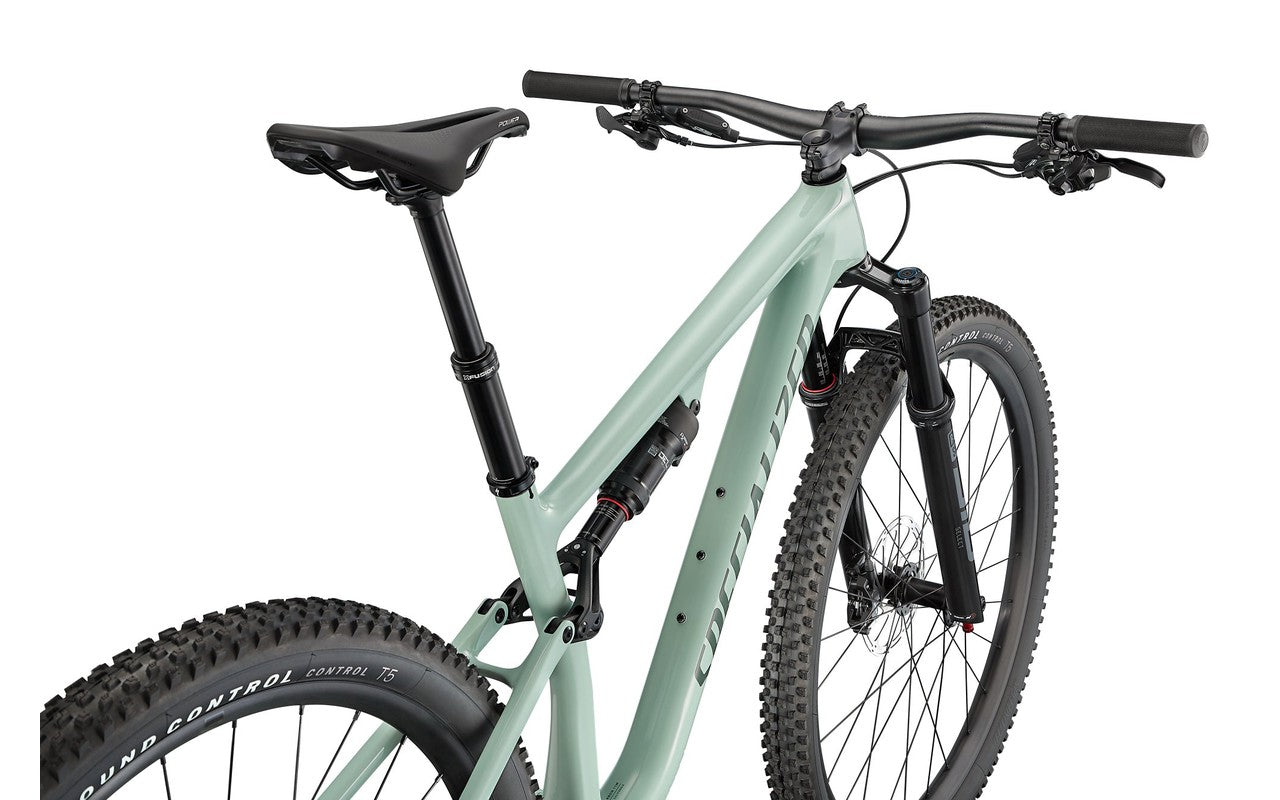

Epic EVO Comp
Epic EVO Comp
SKU: 94822-5003
1 - Available
Couldn't load pickup availability
Read More
Read More
Lightweight yet stiff. Capable yet efficient. Fun yet focused. Hell, if Goldilocks ever wanted to drop you, our moneyÕs on her picking an Epic EVO Comp to do the job.
While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 6-millimeters out back, weÕve worked overtime to make sure itÕs been implemented in a way thatÕll have you saying ÔWhoa!Õ as soon as you hit your first stretch of singletrack.

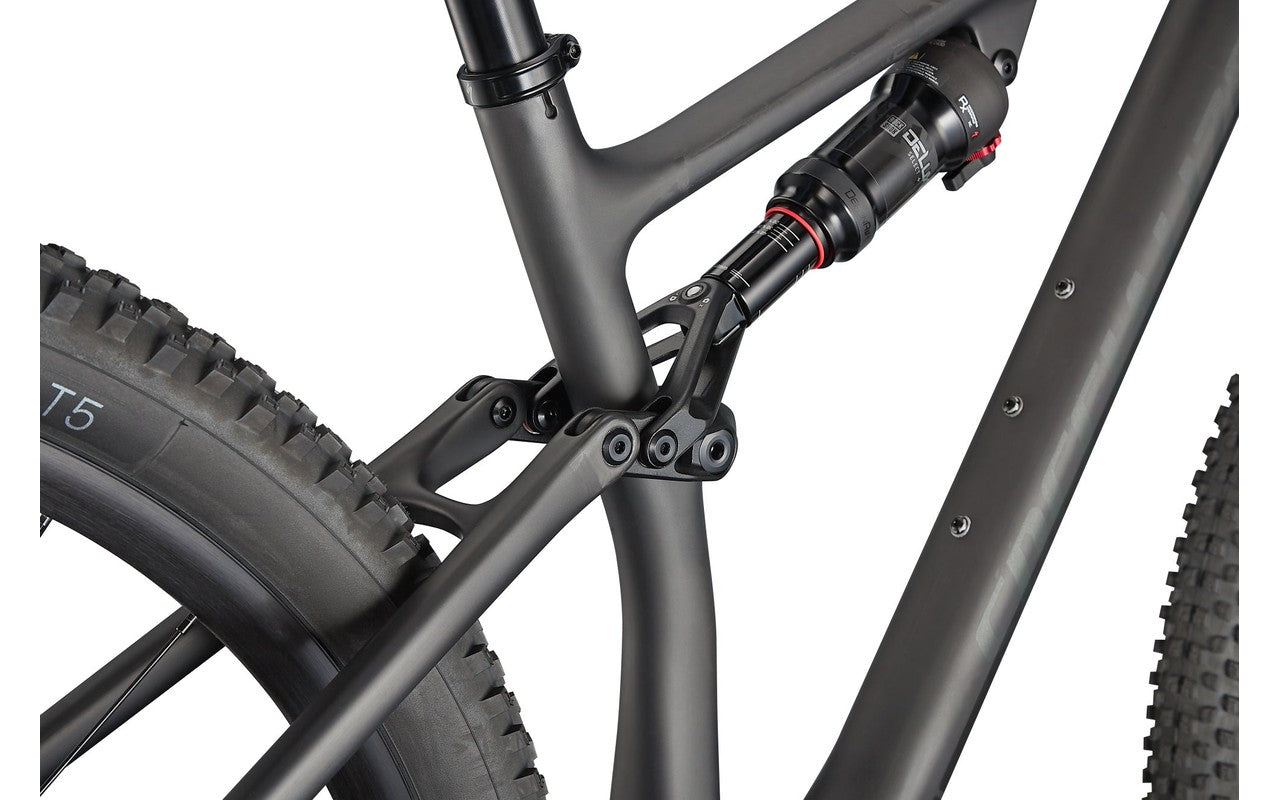

Meticulously engineered to retain as much of the EpicÕs standard-setting efficiency as possible, the EVOÕs new suspension kinematics work in concert with Rx XC Tune customized suspension front and rear to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.
With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. ItÕs also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize Epic EVOÕs handling characteristics.
Keeping the Epic EVO Comp just right is a well-balanced component mix featuring powerful four-piston SRAM G2 RS brakes, an X-Fusion Manic dropper, and RockShox SID Select fork.
Technical Specifications
FRAMESET
Frame
FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel
Seat Binder
SEAT COLLAR, KCNC, SPL-SC02-349-02, EXTRUDED, 7075-T73, 34.9MM, 10B21, BLACK ZINC BOLT, BOLT CLAMP TYPE
ACCESSORIES
SWAT
SWAT EMT Cage-Mount Tool
Suspension
Rear Shock
RockShox Deluxe Select+, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm
SUSPENSION
Fork
Rockshox SID Select, Charger RL Damper, Debon Air, 15x110mm, 44mm offset, 120mm Travel
COCKPIT
Stem
Alloy Stem, 35mm clamp, 60mm

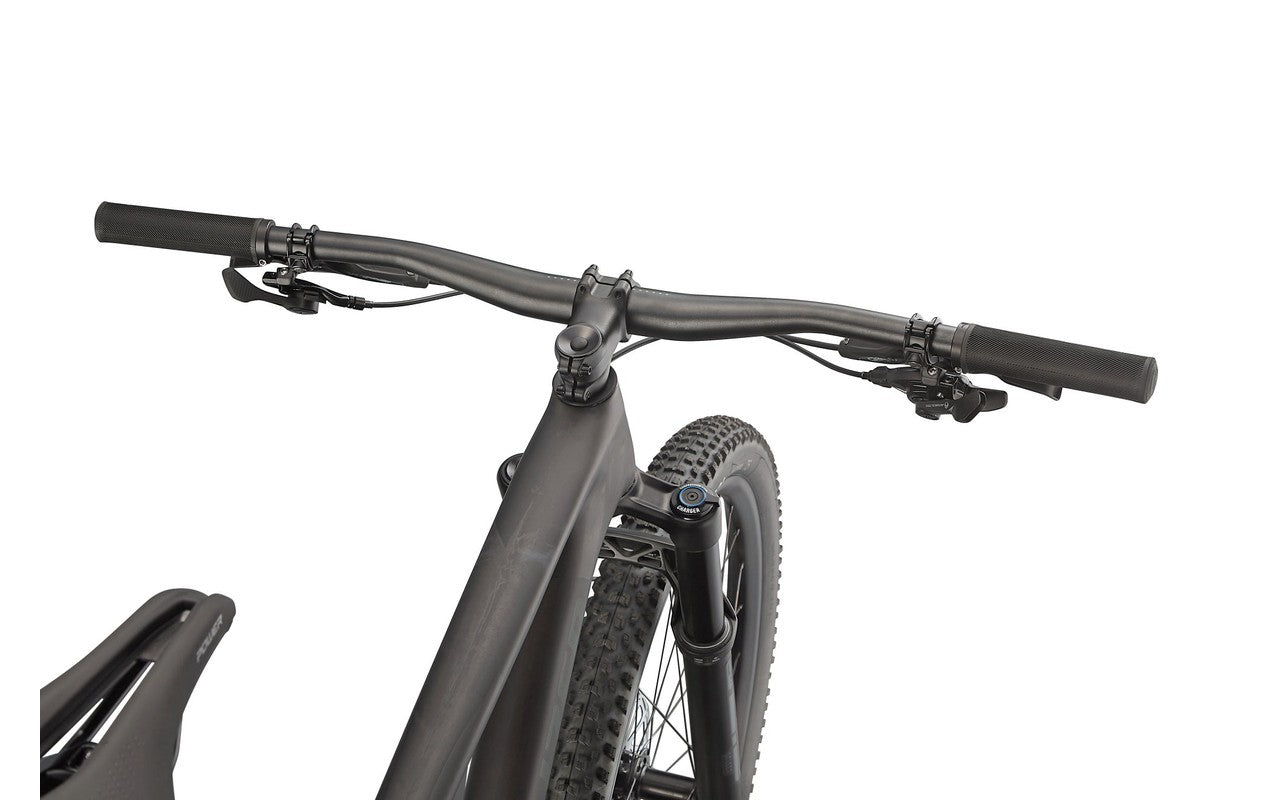

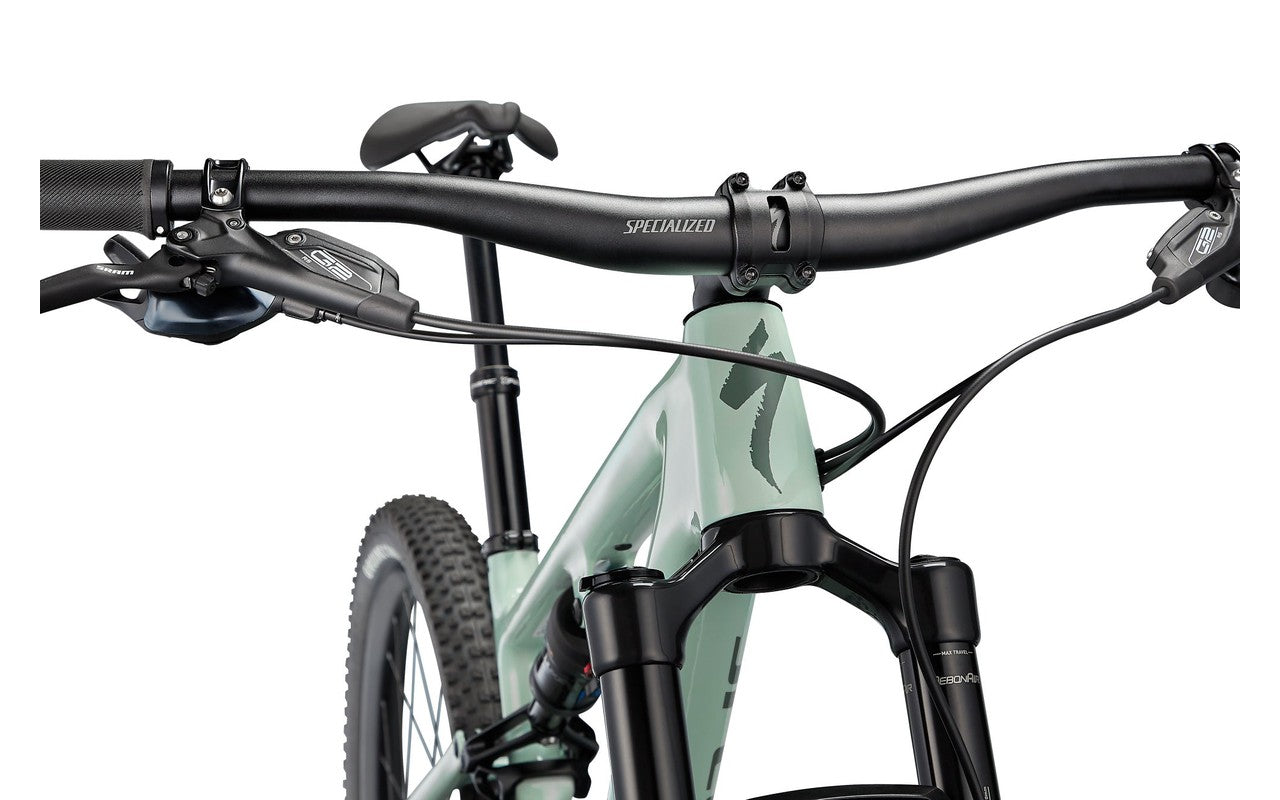

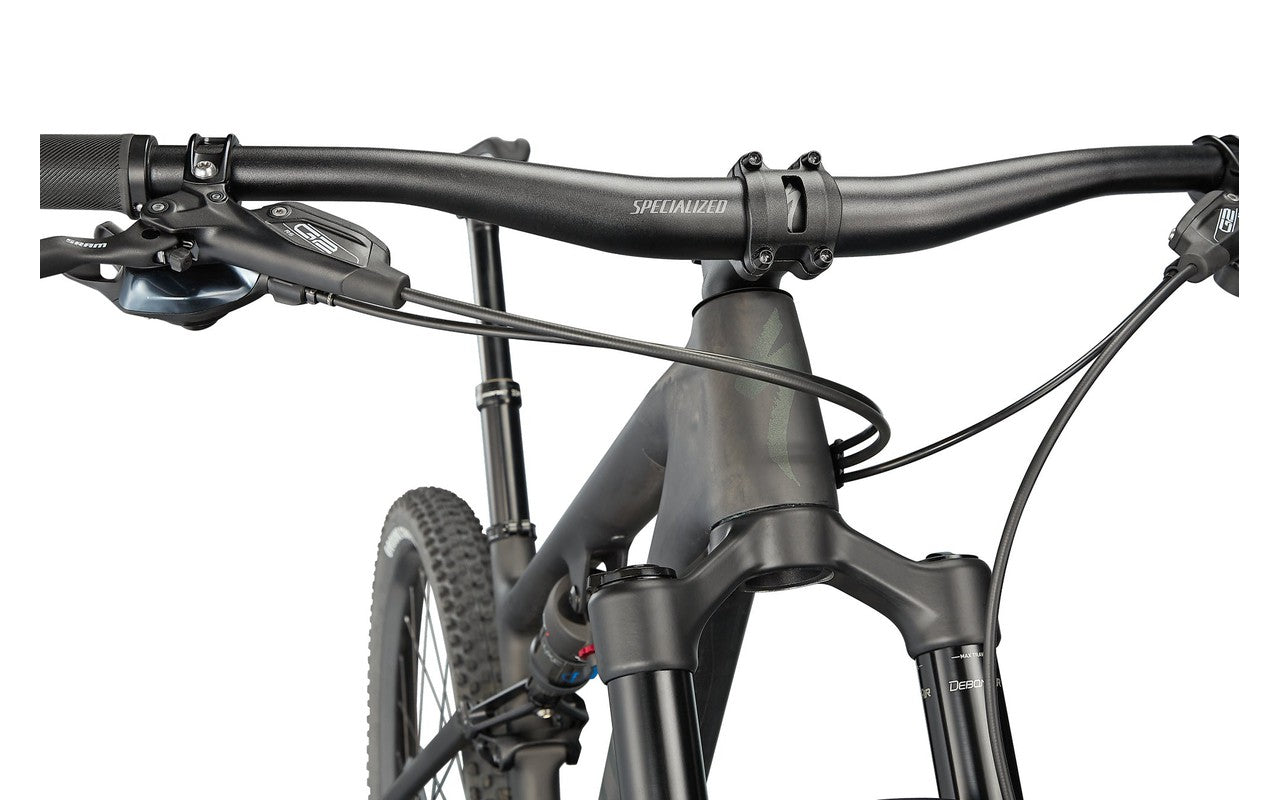

Handlebars
Specialized Alloy, 20mm rise, 35mm, 760mm wide
Tape
Specialized Trail Grips
Saddle
Body Geometry Power Sport, steel rails
SeatPost
X-Fusion Manic, 30.9, 125/150 Travel, 0mm offset
BRAKES
Front Brake
SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake
SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm rotor
DRIVETRAIN
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX, trigger, 12-speed
Cassette
Sram XG-1275, 12-speed, 10-52t
Chain
SRAM NX Eagle, 12-speed
Crankset
SRAM, X1 Alloy Eagle, 12-speed
Chainrings
32T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
WHEELS
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
REAR HUB,BEAR PAWL BMB-00412O1C,SRAM XD STEEL FHB ,6 BOLT DISC,SEALED CARTRIDGE BEARING,28H,12MM AXLE,148MM SPACING
Spokes
DT Swiss Industry
Front Tire
Ground Control, 2Bliss Ready, 29x2.35"
Rear Tire
Ground Control, 2Bliss Ready, 29x2.35"
Inner Tubes
TUBES,STANDARD 48MM PV LOW LEAD 29x1.75/2.4, MAXXIS BRAND
* Specifications are subject to change without notice
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 593mm | 597mm | 611mm | 629mm |
| Reach | 406mm | 436mm | 460mm | 485mm |
| Head Tube Length | 95mm | 100mm | 115mm | 135mm |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| BB Height | 336mm | 336mm | 336mm | 336mm |
| BB Drop | 36mm | 36mm | 36mm | 36mm |
| Trail | 114mm | 114mm | 114mm | 114mm |
| Fork Length, Full | 530mm | 530mm | 530mm | 530mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
| Front Center | 697mm | 729mm | 759mm | 792mm |
| Chainstay Length | 438mm | 438mm | 438mm | 438mm |
| Wheelbase | 1132mm | 1164mm | 1194mm | 1227mm |
| Bike Standover Height | 779mm | 781mm | 793mm | 804mm |
| Seat Tube Length | 400mm | 430mm | 470mm | 520mm |
| Seat Tube Angle | 74.8° | 74.5° | 74.5° | 74.5° |
| Top Tube Length, Horizontal | 567mm | 602mm | 629mm | 659mm |
