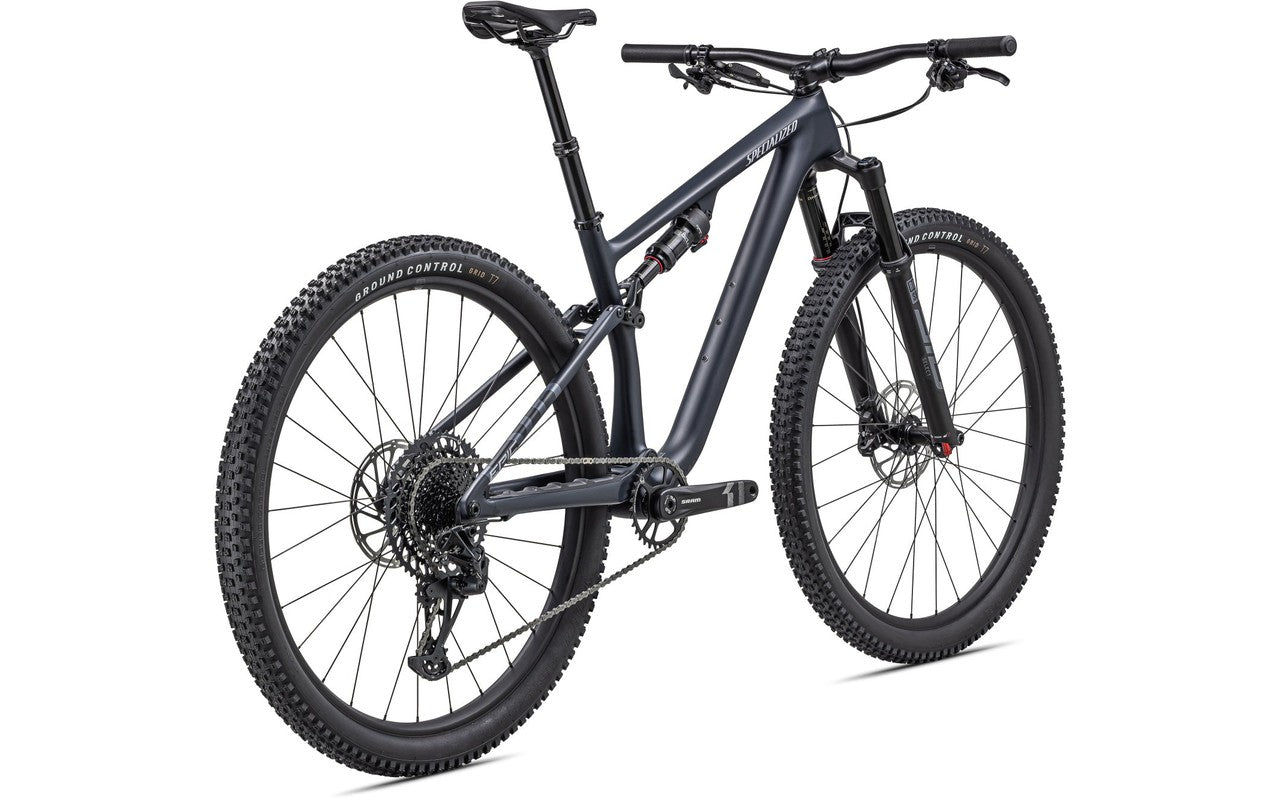

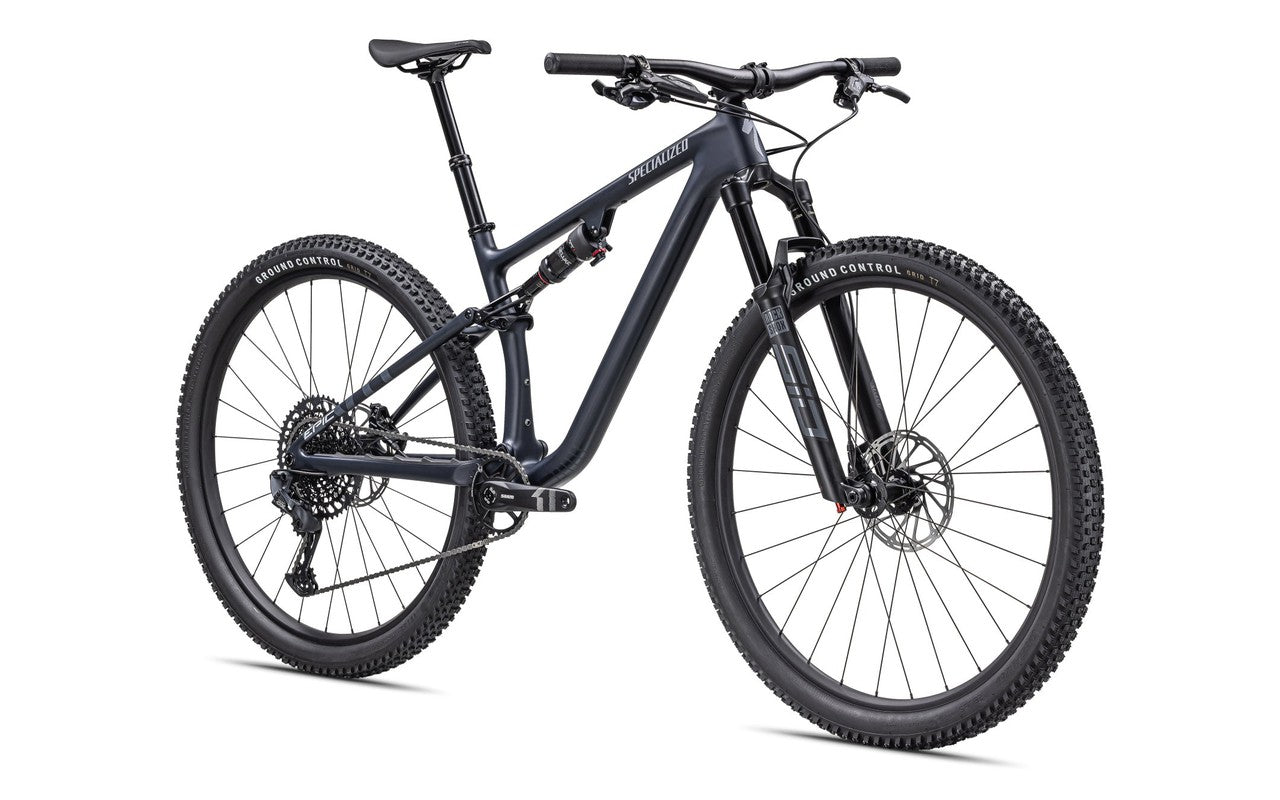

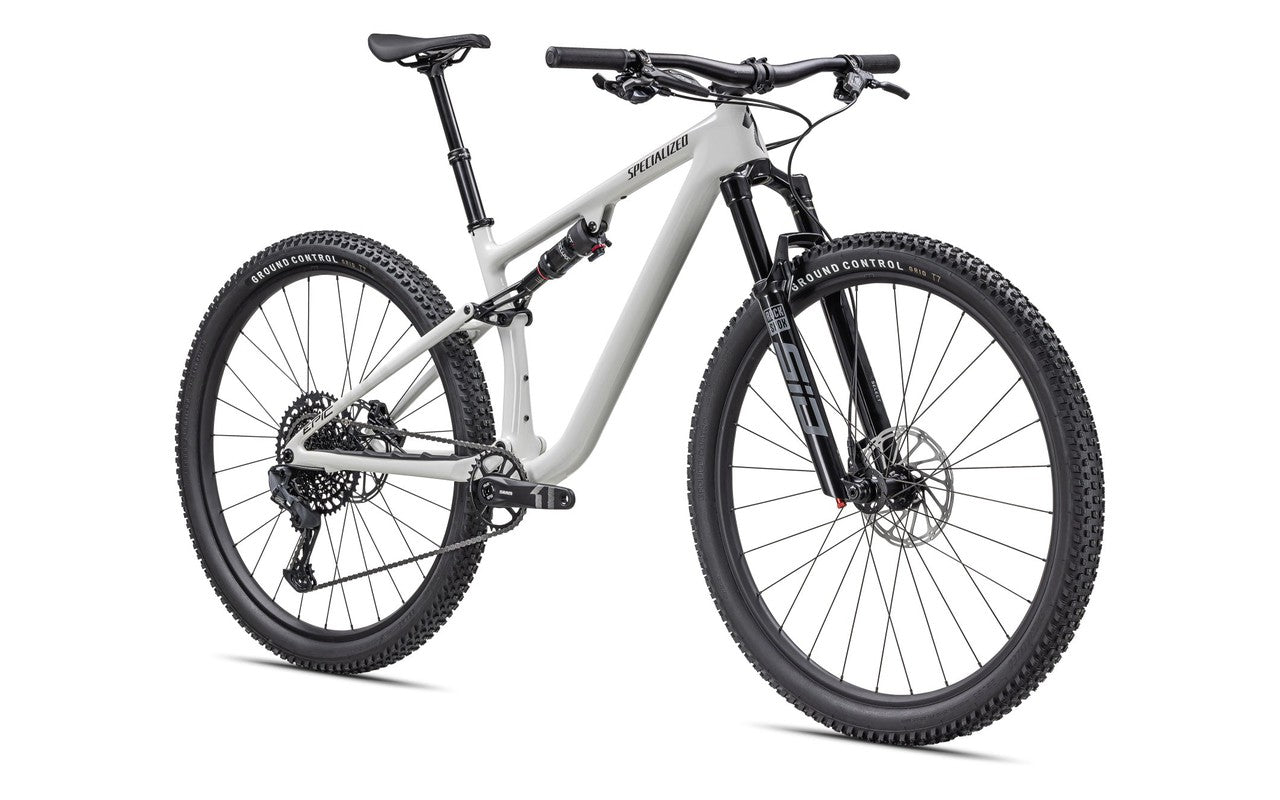

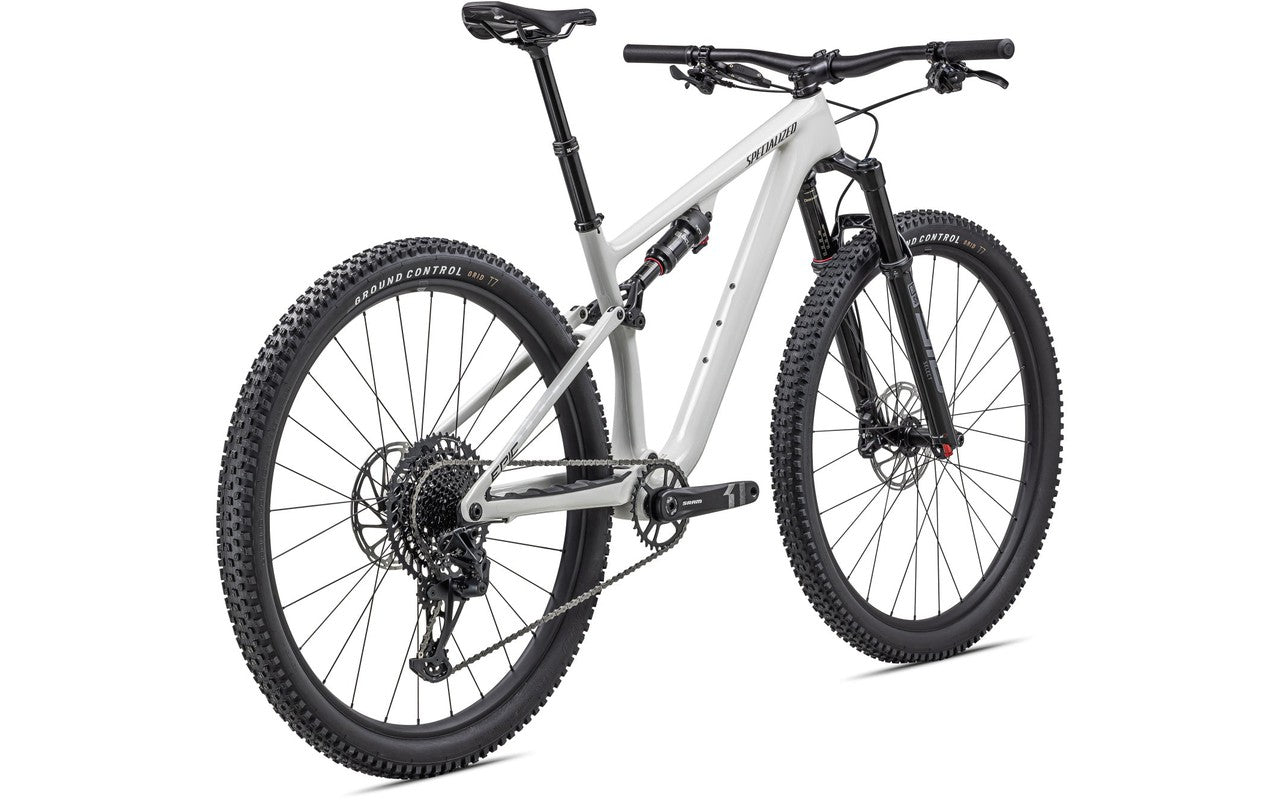

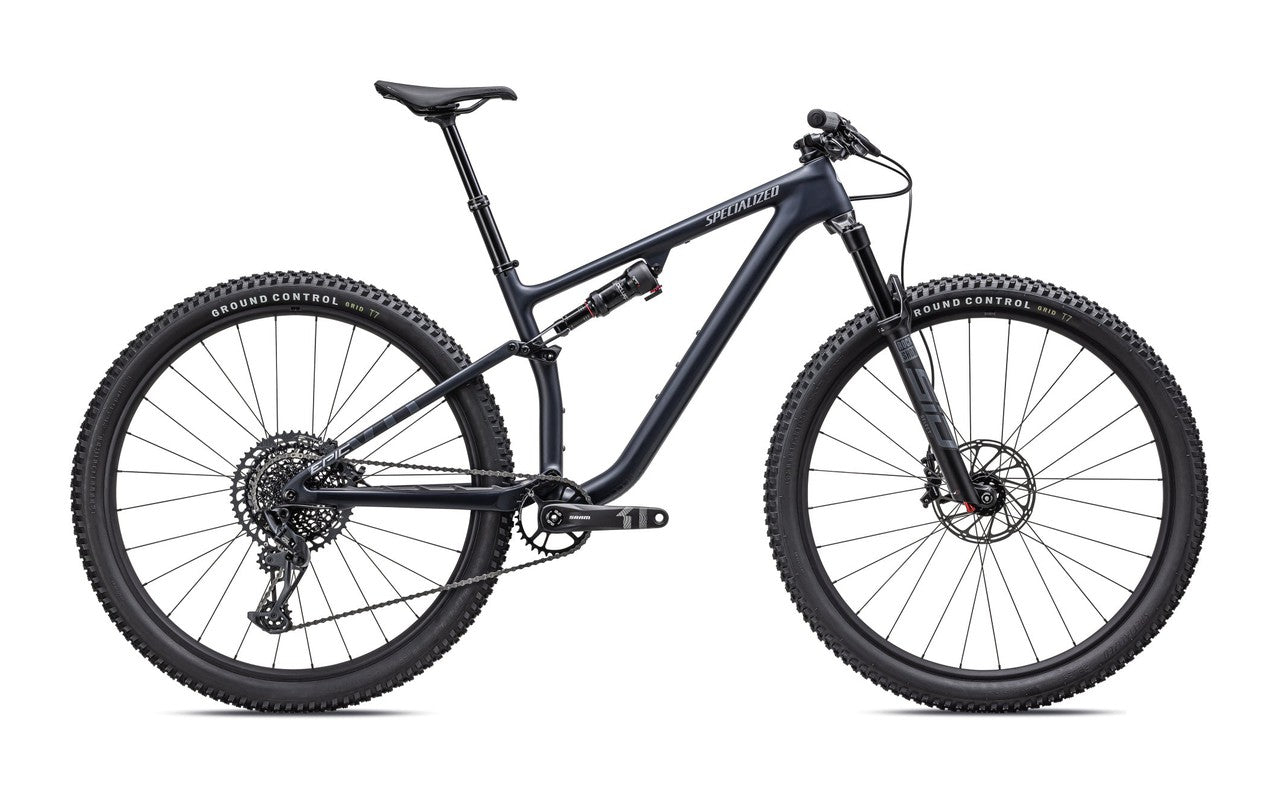

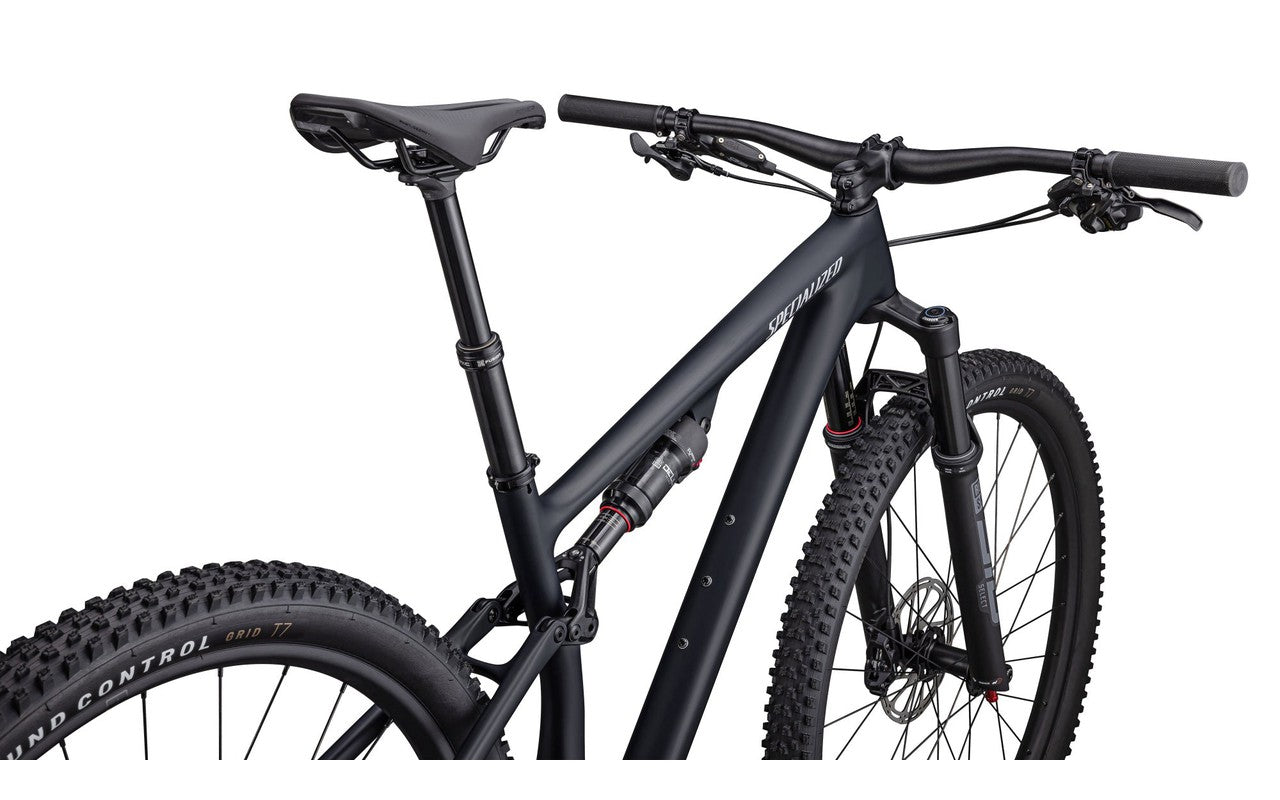

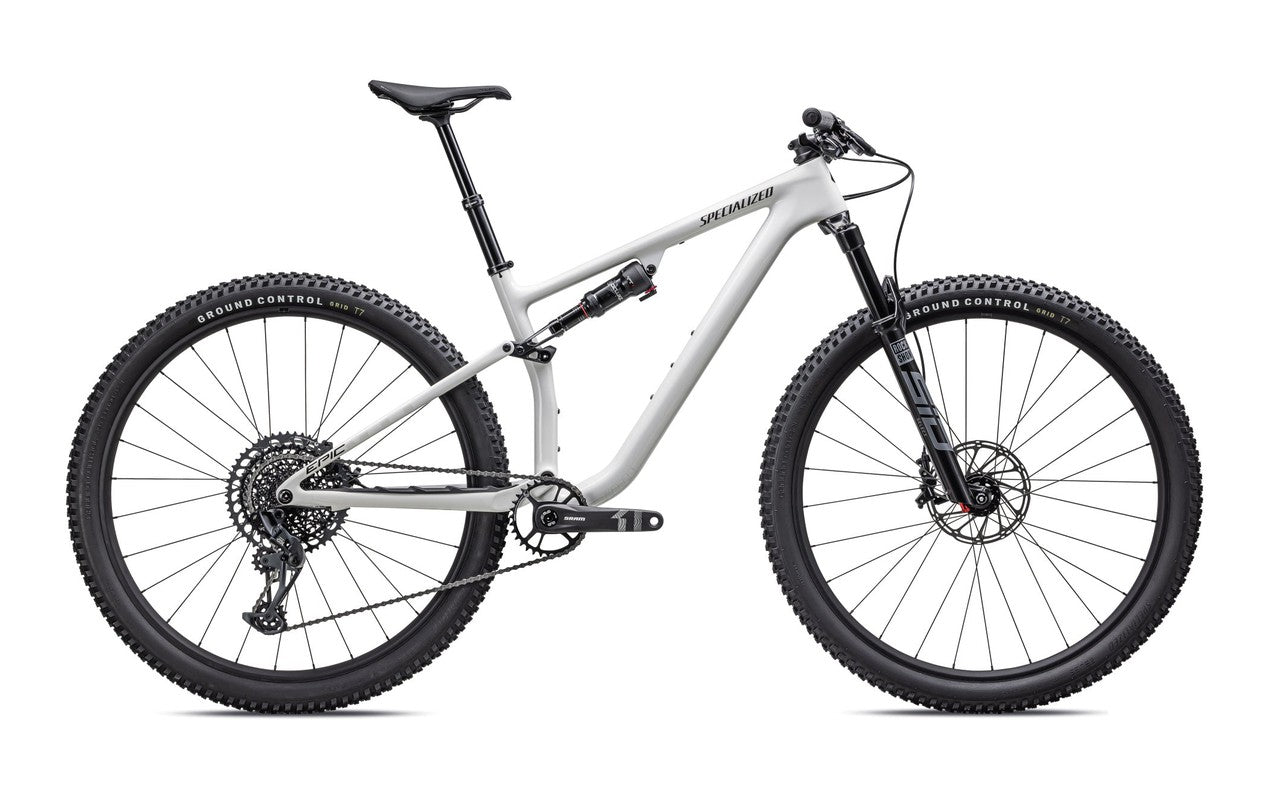

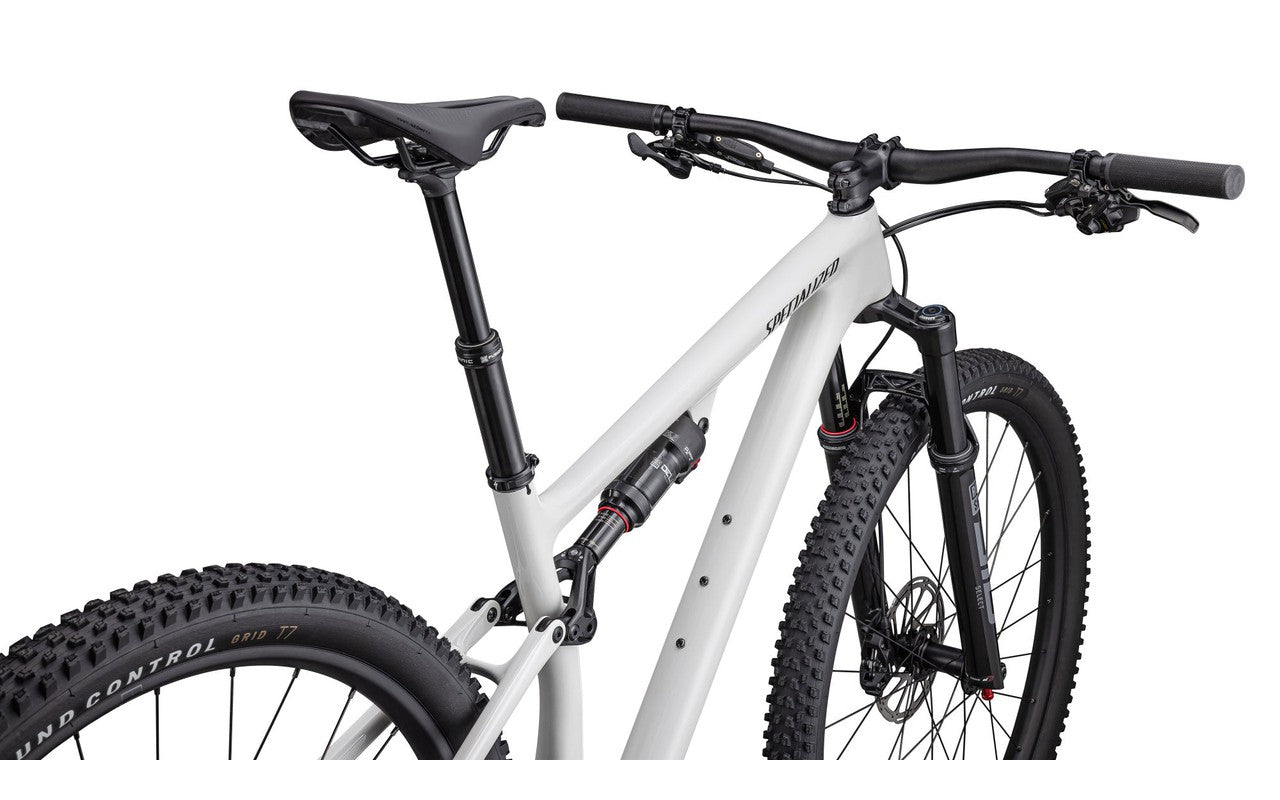

Epic Evo Comp
Epic Evo Comp
SKU: 94823-5002
0 - Available
Couldn't load pickup availability
Read More
Read More
Lightweight yet stiff. Capable yet efficient. Fun yet focused. Hell, if Goldilocks ever wanted to drop you, our money’s on her picking an Epic EVO Comp to do the job.
While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we’ve worked overtime to make sure it’s been implemented in a way that’ll have you saying ‘Whoa!’ as soon as you hit your first stretch of singletrack.
Meticulously engineered to retain as much of the Epic’s standard-setting efficiency as possible, the EVO’s new suspension kinematics work in concert with Rx XC Tune customized suspension front and rear to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.
With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It’s also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize Epic EVO’s handling characteristics.
Keeping the Epic EVO Comp just right is a well-balanced component mix featuring powerful four-piston SRAM G2 RS brakes, an X-Fusion Manic dropper, and RockShox SID Select fork.
- Flip It To Rip It: Tune the ride of the Epic EVO’s FACT 11m carbon frame to match your preferred handling characteristics with flip-chip simplicity that allows riders to reduce the EVO’s headtube angle by half a degree while lowering bottom bracket height by 10 millimeters.
- X-Fusion's Manic dropper post offers infinitely adjustable travel via it's slick shifter-stye remote lever for hassle-free operation when things get dicey.
- 4-piston calipers on an XC bike? What a wonderfil time to be alive—SRAM's 4-piston G2 RS calipers offer plenty of smooth, controllable power to keep the EVO's newfound speed in check.
- Tubeless-ready rims feature a modern 30-millimeter internal width, allowing tires to achieve their ideal profile and footprint for optimal traction.
Technical Specifications
DRIVETRAIN
Chainrings
32T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Shift Levers
SRAM GX, trigger, 12-speed
Rear Derailleur
SRAM GX Eagle, 12-speed
Chain
SRAM NX Eagle, 12-speed
Cassette
Sram XG-1275, 12-speed, 10-52t
Crankset
SRAM, X1 Alloy Eagle, 12-speed
COCKPIT
Stem
Alloy Stem, 35mm clamp, 60mm
Saddle
Body Geometry Power Sport, steel rails

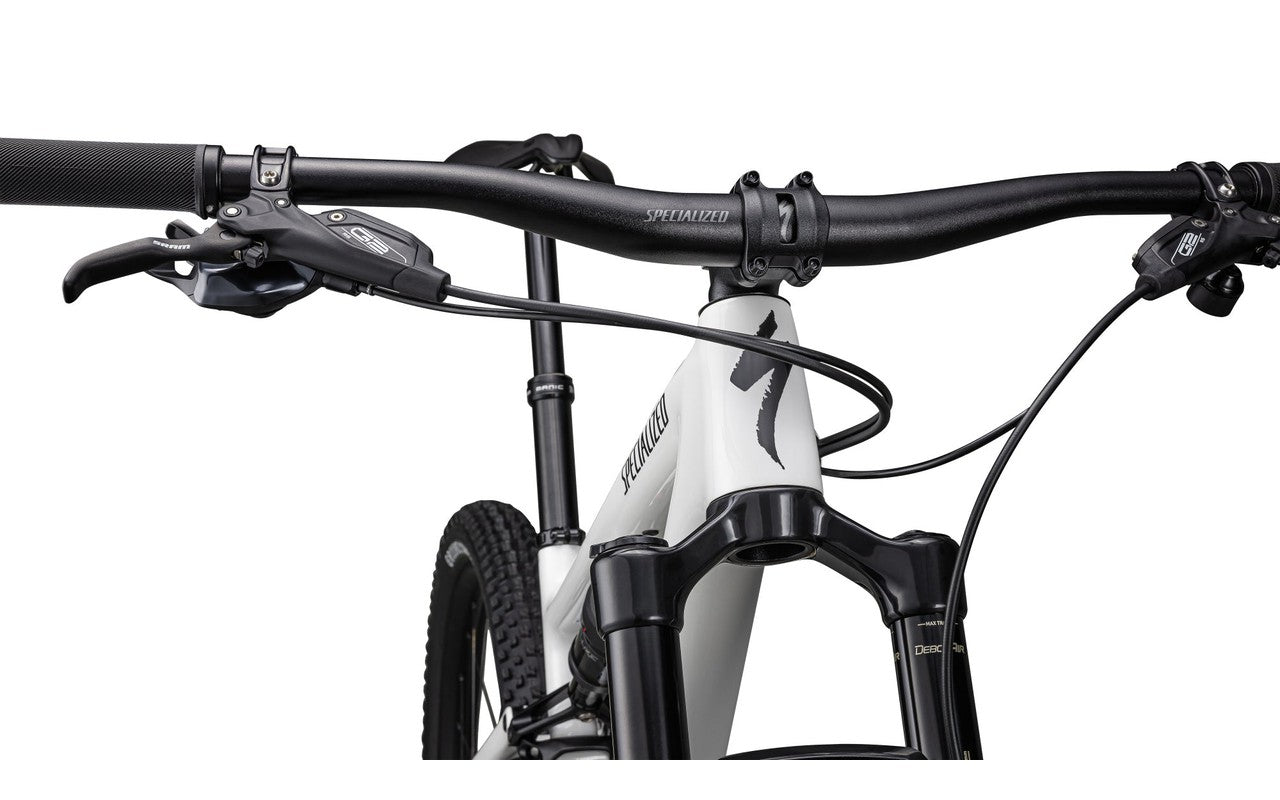

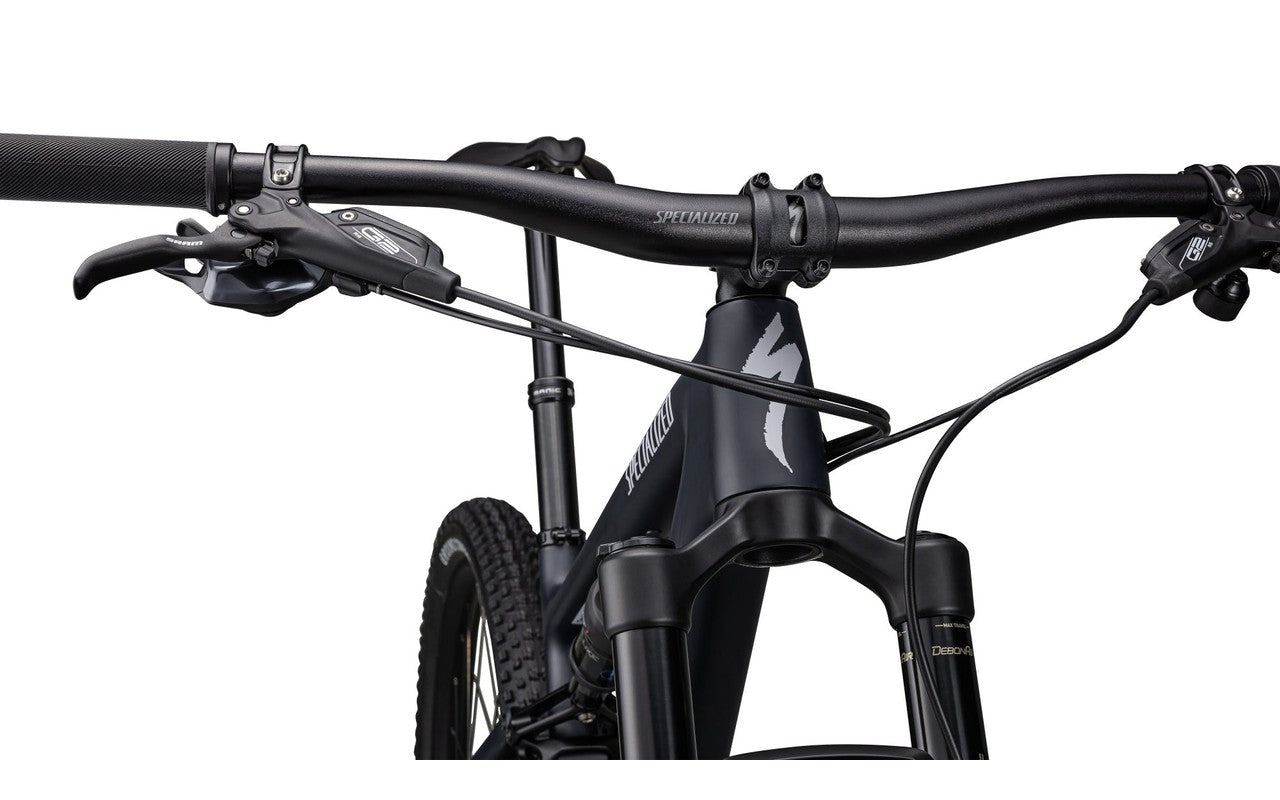

Handlebars
Specialized Alloy, 20mm rise, 35mm, 760mm wide
Tape
Specialized Trail Grips
SeatPost
X-Fusion Manic, 30.9, 125/150 Travel, 0mm offset
WHEELS
Rear Hub
Specialized alloy, sealed cartridge bearings, 6-bolt, 148mmx12mm thru-axle, 28h
Spokes
DT Swiss Industry
Rims
Specialized 29, 27mm inner width, 28h, tubeless ready
Front Tire
Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35
Rear Tire
Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35
Front Hub
Specialized alloy, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Inner Tubes
Standard, Presta valve
FRAMESET
Frame
FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel
Seat Binder
Specialized Alloy, 34.9mm
SUSPENSION
Fork
Rockshox SID Select, Charger RL Damper, Debon Air, 15x110mm, 44mm offset, 120mm Travel
Rear Shock
RockShox DELUXE Select+, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm
BRAKES
Front Brake
SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake
SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm rotor
ACCESSORIES
SWAT
SWAT EMT Cage-Mount Tool
* Specifications are subject to change without notice
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Stem Length | 60mm | 60mm | 60mm | 60mm |
| Handlebar Width | 760mm | 760mm | 760mm | 760mm |
| Seatpost Length | 125mm | 125mm | 150mm | 150mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Stack | 593mm | 597mm | 611mm | 629mm |
| Reach | 406mm | 436mm | 460mm | 485mm |
| Head Tube Length | 95mm | 100mm | 115mm | 135mm |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| BB Height | 336mm | 336mm | 336mm | 336mm |
| BB Drop | 36mm | 36mm | 36mm | 36mm |
| Trail | 114mm | 114mm | 114mm | 114mm |
| Fork Length, Full | 530mm | 530mm | 530mm | 530mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
| Front Center | 697mm | 729mm | 759mm | 792mm |
| Chainstay Length | 438mm | 438mm | 438mm | 438mm |
| Wheelbase | 1132mm | 1164mm | 1194mm | 1227mm |
| Bike Standover Height | 779mm | 781mm | 793mm | 804mm |
| Seat Tube Length | 400mm | 430mm | 470mm | 520mm |
| Seat Tube Angle | 74.8° | 74.5° | 74.5° | 74.5° |
